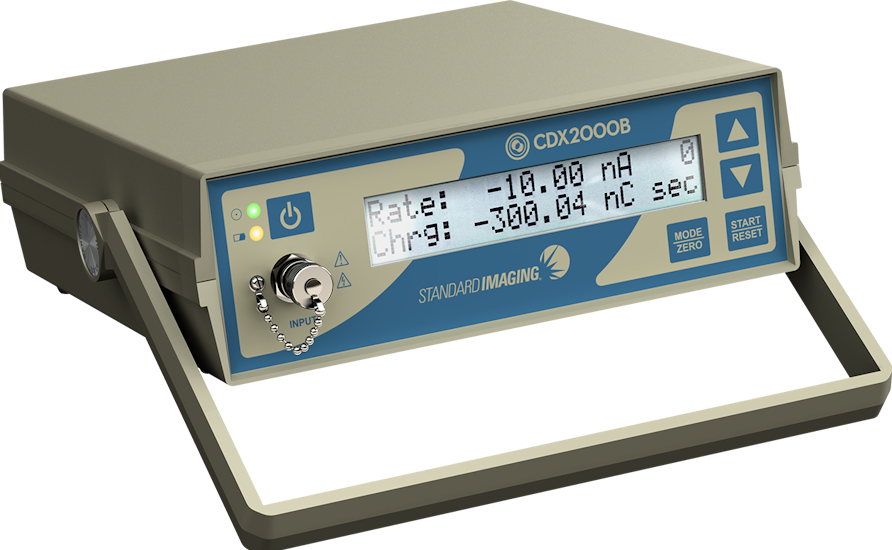

CDX 2000B Electrometer

The CDX 2000B is a stable, lightweight electrometer for use in external beam dosimetry measurements and precise HDR brachytherapy calibrations.

Wide Range for Many Applications

Wide amp and coulomb range is excellent for absolute dosimetry measurements with farmer type and parallel plate ion chambers.

Low Noise, Repeatable Measurements

0.1% repeatability and exceptionally low leakage of less than 1 fA.
Digital filter eliminates nearly all the effects of noise, resulting in stable, exact measurements.

Specifications

CDX 2000B Electrometer
REF Number 90001
Height 7 cm (2.75 in)
Width 22.2 cm (8.24 in)
Length 23 cm (9 in)
Weight 1.4 kg (3.00 lbs)
Three Modes RATE:
0.001 nA – 500.00 nA, 1 pA resolution

CHARGE:
0.01 nC – 999,999 nC, 10 pC resolution

COMBINED:
Accumulated charge and the current readings are displayed simultaneously
Charge Collections TIMED:
User set duration (Range: 0 – 600 sec;
Increment: 15 sec; Resolution: 1 sec)

CONTINUOUS:
Unlimited duration with manual stop
Repeatability ± 0.1%
Long-Term Stability 0.5% (over one year)
Stabilization Time ± 0.1%
Response Time < 3 s
Non-Linearity ± 0.25%
Conformity CE 93/42/EEC
Zero Drift ± 0.25%
Zero Shift ± 0.25%
Display Backlit LCD, 2 x 20 with 5/16" characters
Input BNC two lug, triaxial connector
Bias Voltage Nominal ± 450 volt bias

5 USER BIAS SETTINGS:
-450, - 300, - 150, 0; 150, 300, 450 (VDC)

ACCURACY:
± 0.3 volt
Zeroing Automatic zero function, user activated
Output Isolated RS-232; unidirectional 19,200 baud rate; 8 data bits; no parity; 1 stop bit
Power 100-240 VAC, 0.5 A max, 50/60 Hz input to external power supply, 9 VDC, 1.7 A power supply output to electrometer input, UL/TUL listed power supply; internal battery: 8 hrs per charge
Product Standards CE 93/42/EEC

Support

Product Resources

Publications, tech notes, testimonials, and other resources to support CDX 2000B Electrometer.

Looking for a user manual?

Available on request. Contact your Account Manager

Publications

View publications related to this product from experts in the fields of medical physics and oncology.

Go to Publications »

Tech Notes

Find detailed instructions on how to setup and execute common processes from our experienced technicians.

Go to Tech Notes »

Frequently Asked Questions

How often should I send my electrometer in for calibration?

The IEC (International Electrotechnical Commission) recommends electrometer calibration every two years to assure optimal performance.

  • IEC 60731 – Medical electrical equipment – Dosimeters with ion chambers such as used in radiotherapy.
  • IEC 61674 – Medical electrical equipment – Dosimeters with ion chambers and/or semi-conductor detectors as used in X-ray diagnostic imaging.

Standard Imaging can coordinate your calibration at an accredited ADCL, but also provides free inspection and testing services, as well as expedited repair service, if necessary. Our goal is a two-week turnaround upon receipt of equipment, although actual time may vary depending on the ADCL. Request Service »
