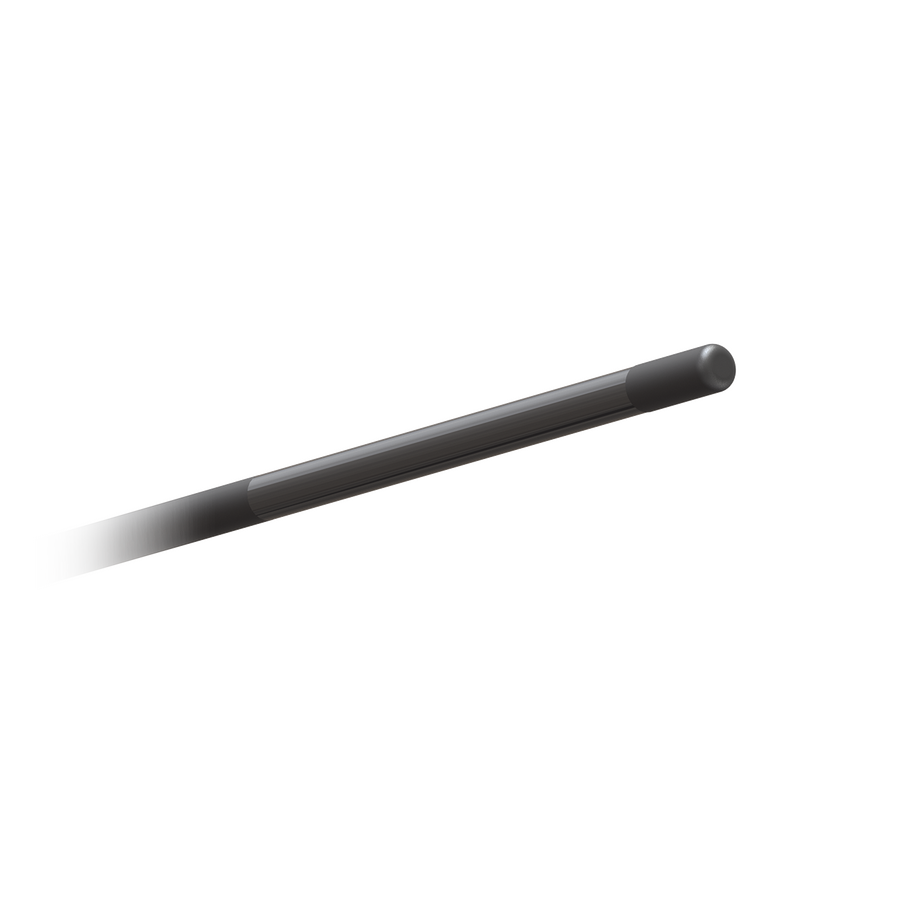

Exradin w1 main 1400

Exradin^® W1 Scintillator

Water equivalent detector

Exradin® W1 Scintillator Overview

Point dosimetry that's invisible to the beam

Has a k_Q of 1.000, making the W1 an ideal detector for SRS
Water equivalent
Inherently waterproof
Energy independent
Temperature independent
Pair the W1 with the SuperMAX Electrometer to effectively eliminate Čerenkov effect without the need for extraneous calculations.
The W1 can be connected to any dual channel electrometer

Dimensions

Scintillating fiber

1.0 mm diameter x 3.0 mm long
Scintillator housing

2.8 mm diameter x 42 mm long
Optical fiber

1.0 mm diameter core x 2.2 mm diameter jacket x 3 m long
Photodiode enclosure (LxWxH)

80 x 46 x 30 mm
Weight

0.34 kg (0.75 lbs)

Materials

Scintillating fiber

Polystyrene with fluorescent dopants
Optical fiber

Acrylic (PMMA) with Polyethylene jacket
Scintillator enclosure

Epoxy potted within an ABS plastic tip and polyimide stem
Optical fiber minimum bend radius

6 cm
Scintillating fiber physical density

1.05 g/cm³
Nominal response

60 pC / Gy
Radiation degradation

~ 2% / kGy

Publications

Small-field beam data acquisition, detector dependency, and film-based validation for a novel self-shielded stereotactic radiosurgery system

Measuring small field profiles and output factors with a stemless plastic scintillator array

Replacing gamma knife beam-profiles on film with point-detector scans

Performance of a novel, water-equivalent commercial scintillation dosimeter for small fields and hig

Poster Estro Dd Psd2014Def

Mcckay Sdvp Poster

Characterization of the Exradin W1 scintillator for use in radiotherapy

Characterizes Of Microdetectors In Electron Beam Dosimetry

Evaluation of Plastic Scintillator Detector for Small Field Stereotactic Patient-Specific Quality As

Monte Carlo simulated correction factors for output factor measurement with the CyberKnife system—results for new detectors and correction factor dependence on measurement distance and detector orientation

On the correction, perturbation and modification of small field detectors in relative dosimetry

Comparison of Small Field Dosimetry Measurements in Fields Shaped with Conical Applicators On Two Different Accelerating Systems

Experimental Determination of the Effective Point of Measurement in Electron Beams Using a Commercial Scintillation Detector

Small-Field Beam Quality Corrections and Their Clinical Impact for Flattened and Unflattened Fields

Study On The Magnetic Field Effect On The Exradin W1 Plastic Scintillation Detector

Characterization of a plastic scintillation detector to be used in a multicenter stereotactic radiosurgery dosimetry audit
