DoseView 1D

Easily acquire depth-dose measurements in an intuitive, TG-51 and TRS-398 compliant 1D water scanning system.

0.05 mm Accuracy for Consistent QA

Superior 0.05 mm accuracy of position and repeatability over entire travel distance produced by leadscrew shaft.

Automatic, Customizable Data Collection

New! DoseView 1D Software seamlessly integrates the DoseView 1D, SuperMAX and/or MAX 4000 Electrometers for intuitive operation and testing.

Adjustable step intervals
Multiple acquisition per position
Real-time plotting of data

Easy 3 Point Leveling

3 point leveling simplifies precise detector placement at water surface.

Features & Benefits

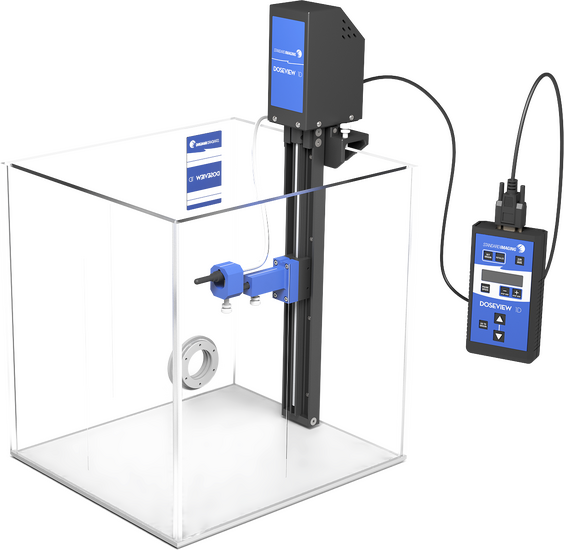

Easy Operation with Handheld Pendant

Establish origin position and return to origin with the press of a button.
Three convenient positioning modes: fast, slow and step (customizable from 0.01 mm to 100 mm).
One-touch toggle between cm/mm.

Phantom Available in Two Sizes:

34 cm x 30 cm x 36 cm
42 cm x 40 cm x 36 cm

Water-Equivalent Bracket Fits Range of Detectors

Adaptable chamber bracket fits most thimble ion chambers and rigid stem parallel plate chambers.

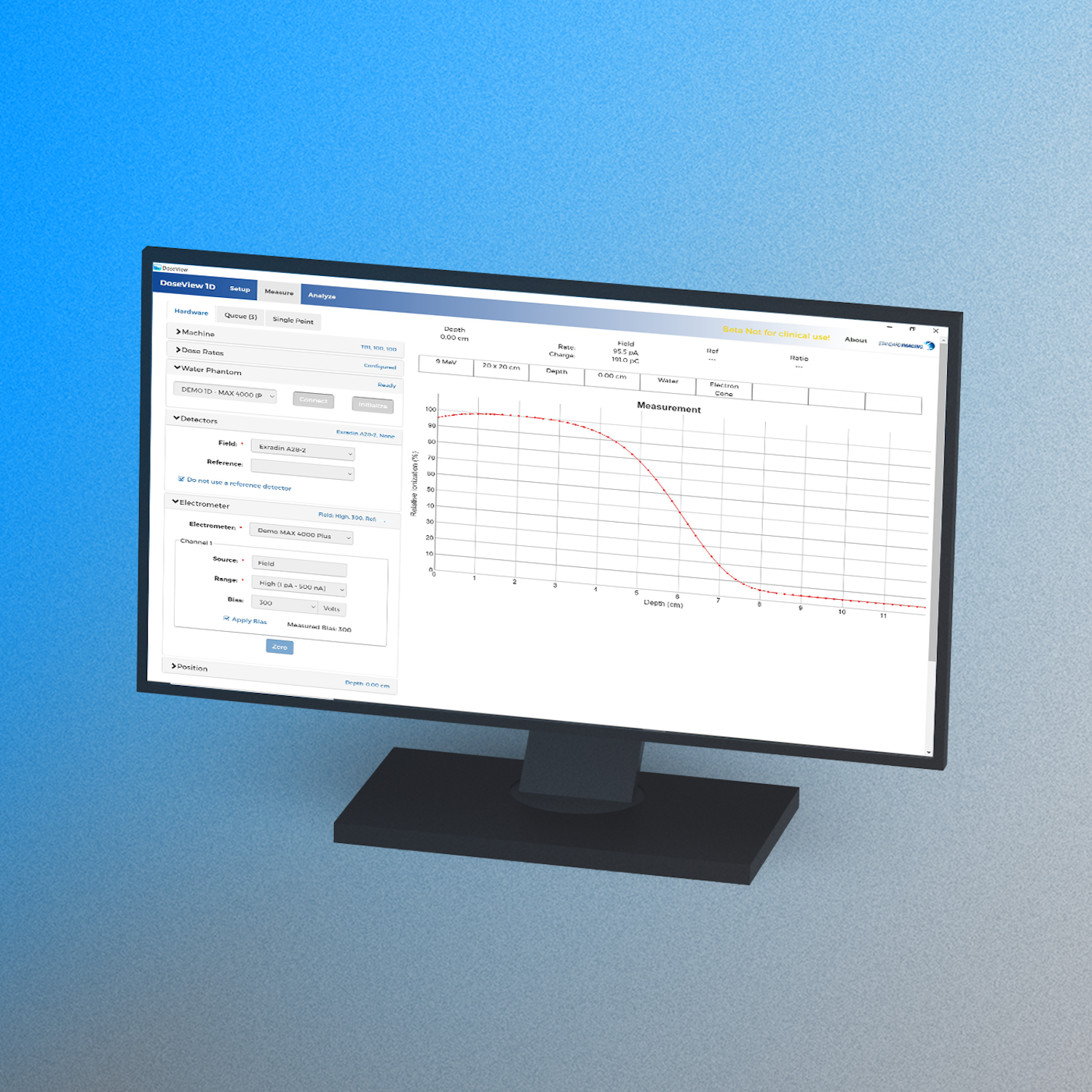

Intuitive Data Collection with DV1D Software

Expedite TG-51 and TRS-398 compliant data collection.
Remotely adjust settings, conduct measurements and view data in real time.
Automatic collection of profiles for all energies
Automated ratio-based acquisition when using the SuperMAX or two MAX 4000 Electrometers.

Specifications

DoseView 1D
Dimensions
1D Scanning Arm	Height: 48.26 cm (19.0 in) Width: 6.77 cm (2.67 in) Length: 9.44 cm (3.72 in)
Water Tank (REF 91800)	Height: 36 cm (14.17 in) Width: 30 cm (11.81 in) Length: 34 cm (13.39 in)
Water Tank (REF 91810)	Height: 36 cm (14.17 in) Width: 40 cm (15.75 in) Length: 42 cm (16.54 in)
Water Tank Material	Clear acrylic 0.95 cm (0.375 in)
Weight	1D Scanning Arm 1.36 kg (3 lbs) Handheld Controller 0.23 kg (0.5 lbs) Water Tank (ref 91800, empty) 6.35 kg (14 lbs) Water Tank (ref 91810, empty) 10.43 kg (23 lbs)
Max Scanning Arm Travel	27.5 cm (10.8 in)
Ionization Chamber Holder Diameter Accommodation	Max: 20 mm (0.79 in) Min: 6 mm (0.24 in)
Backscatter clearance at 25 cm depth	˜ 8 cm (3.1) including phantom base
Accuracy of Position	± 0.05 mm (0.002 in) over entire 275.00 mm
Repeatability of Position	± 0.05 mm (0.002 in) over entire 275.00 mm
Operating Conditions	Pressure: 680 - 800 mm Hg Temperature: 10 - 40 °C Relative Humidity: 30 to 75%, non-condensing
Storage Conditions	Temperature: -40 to 70 °C Relative Humidity: 0 to 95%, non-condensing Cabling: 100 ft extension cable provided (standard RS-232 configuration)
Power Requirements	AC Output 12 VDC @ 1.25 A
Optional Detector Brackets	PTW Markus® (ref 70850) PTW Roos® (ref 70852) Vertical Holder (ref 70851)
Product Standards	CE

“We have been using the upgraded DV1D arm along with the SuperMax electrometer and software. We love it! The ability to control the scan arm outside the room, script measurements at different depths, and copy/paste the results directly into Excel has significantly reduced the amount of time needed to perform monthly QA and TG-51. It’s like having the functionality of a 3D tank with the setup ease (and cost savings) of a 1D tank!”

Mark Geurts, MS DABR Medical Physicist/Associate Researcher UW Health Carbone Cancer Center, Radiation Oncology Dept., Madison, WI
