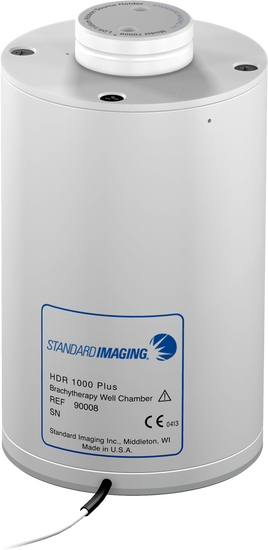

HDR 1000 Plus Well Chamber

Global standard for independently verifying prescribed
brachytherapy patient dose.

Confidence in Brachytherapy Source Calibration

  • Validated in over 50 scientific presentations and used by primary and secondary radiation standards laboratories worldwide.
  • The HDR 1000 Plus Well Chamber is an air-communicating chamber, so there is no inaccuracy due to an undetected gas leak as in a pressurized chamber.
  • Ideal for LDR and HDR brachytherapy.

Why Perform Independent Verification?

  • AAPM TG-56, TG-40 and TRS-398 recommend independent verification of source strengths.

  • Without independent calibration, centers in the U.S. may be forgoing reimbursement income.

Specifications

HDR 1000 Plus Well Chamber
REF Number 90008
Height 15.6 cm (6.1 in)
Diameter 10.2 cm (4.0 in)
Insert Height 12.1 cm (4.8 in)
Insert Diameter 3.5 cm (1.4 in)
Weight 2.7 kg (6.1 lbs)
Active Volume 245 cm3
ADCL Calibrations HDR 192Ir and/or LDR radionuclides as requested
Connector BNC two lug, triaxial connector
TNC, Type M, or BNC + Banana (optional)
Range 10 U to 80 MU 0.01 mCi to 20 Ci
Cable 1 m (~3 ft)
Bias Voltage Applied ± 300 volts, typical
Leakage Less than 50 fA
Stability 0.2% (Reproducibility over 2 years)
Response ± 0.5% over 25 mm at center of axis
Sensitivity Current to Air Kerma Strength (U=1uGym2/h)
HDR Iridium 2.1 pA/U
Cesium 2.0 pA/U
LDR Iridium 2.3 pA/U
Iodine 4.3 pA/U
Palladium 2.1 pA/U
Sensitivity Current to Apparent Activity
HDR Iridium 8.6 nA/Ci
Cesium 5.6 nA/Ci
LDR Iridium 9.1 nA/Ci
Iodine 5.4 nA/Ci
Palladium 2.4 nA/Ci
Aion .9996, typical
Case Wooden carrying case
Product Standards CE0413, Externally certified IEC 60601-1, IEC 60601-1-2
