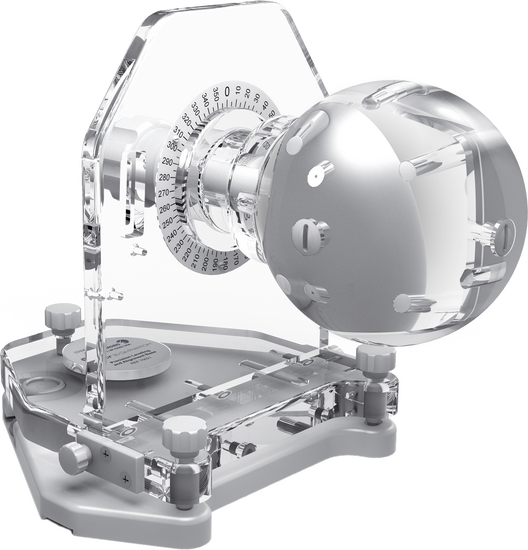

Lucy 3D QA Phantom
Unrivaled, End-To-End Stereotactic QA
The Lucy 3D QA Phantom exceeds strict demands set by physicists performing SRS/SRT QA. Each component of the Lucy phantom is manufactured within 0.1 mm tolerances, ensuring the most precise, practical SRS tool on the market.
Fast, Easy and Customizable Setup
The Lucy 3D QA Phantom interfaces with most commercial SRS frames and frameless systems for fast setup and verification of placement accuracy in patient treatment conditions. The SRS frame (with Lucy) is mounted on the couch and treated within the manufacturer’s exact coordinate system.
Features & Benefits
Confident Image Fusion
Use Lucy to verify the accuracy of image fusion with a single phantom. Fused images can be compared to measurements described in the Lucy specifications to ensure sub-millimeter precision.
Minimize Transfer Errors
Industry-leading manufacturing tolerances provide incomparable accuracy when contrasting the Lucy volumes, geometry and distance measurements to images in treatment planning software. Since these measurements should be evaluated at each step of the imaging process, these rigid tolerances can drastically reduce cumulative uncertainty.
Simple Patient Dosimetry
The dosimetry inserts for the Lucy quickly obtain absolute, relative and point-dose dosimetry measurements at isocenter and at exact positions off isocenter. This allows for a seamless evaluation of dose as well as geometric accuracy, including CBCT and MV/kV alignment.
How It Works
Scan
A variety of targeting inserts are available for testing accuracy.
View Details & Accessories »
Plan
Create and deliver a plan based on known geometry. Measure cumulative errors and systemic uncertainties from end-to-end in the stereotactic QA chain.
View Details & Accessories »
Treat
Ion chambers or film can confirm prescribed dose and software can help with automatic analysis of TG-142 recommended tests.
View Details & Accessories »
Testimonials
"The Lucy Phantom is a multipurpose phantom for clinical medical physicists. Not only is Lucy a very important tool for Stereotactic Radiosurgery but it is also ideal for CT and MRI QA work."
"Combined with the A16 chamber, the LUCY Phantom is an exceptional QA device. It is so easy to use with ExacTrac that we use it to perform patient specific QA for every SRS patient treated on our Novalis TX."
"I have just completed commissioning of the BrainLab Elements software using the Multiple Met Insert with the Lucy 3D QA phantom and Exradin A16 chamber. Film dosimetry was prodigious, but once I got the hang of it, it was actually a very elegant way to handle the commissioning. Results were good. 3%/1 mm gamma analysis pass rates were on the order of > 90%, better than the recommended criteria of accrediting bodies. The 5%/1 mm results were > 95%. In total, I ran 15 plans and analyzed 37 film planes during the process. Lucy proved to be very amenable to the testing process once I ironed out some issues on the treatment planning and delivery side. Thanks again. I hope that the product is a successful addition to your Lucy product line."
Related Products
- Micro Ion Chambers
-
- Superior small-field dosimetry to assess pinpoint radiation in IMRT, stereotactic, orthovoltage, x-rays and superficial skin therapy.
- PIPSpro Software
-
- True Leaf Speed QA, Not Just Qualitative Results
- PIPSpro Software Stereotactic
-
- PIPSpro Software’s Stereotactic Module automatically analyzes ball marker images from portal imaging systems to determine isocentricity.
- SuperMAX Electrometer
-
- The premier two-channel, reference-grade electrometer on the market.
- Exradin D1H & D1V Diode Detectors
-
- Maximize signal and spatial resolution and minimize angular dependence for consistent, accurate small-field stereotactic measurements.
Videos
Lucy 3D QA Phantom - Introduction
-
Lucy 3D QA Phantom - Introduction
0.87 min
-
Lucy 3D Phantom: End to End Stereotactic QA
0.03 min
-
A clinical experience with the Lucy 3D QA Phantom
0.15 min
-
Lucy 3D QA Phantom Frame Based Demo - Part 1
0.72 min
-
Lucy 3D QA Phantom Frame Based Demo - Part 2
0.05 min
-
Lucy 3D QA Phantom Frame Based Demo - Part 3
0.52 min
-
Lucy 3D QA Phantom Frame Based Demo - Part 4
0.88 min
Support
Product Resources
- Lucy 3D QA Phantom Brochure pdf Format (2.473 MB)
- Lucy 3D QA Phantom Datasheet pdf Format (1.404 MB)
Publications
View publications related to this product from experts in the fields of medical physics and oncology.
Go to Publications »
Tech Notes
Find detailed instructions on how to setup and execute common processes from our experienced technicians.
Go to Tech Notes »Frequently Asked Questions
- What makes the Lucy unique?
Simply put - unmatched accuracy. The Lucy 3D QA Phantom is the only phantom available where each component is manufactured to strict, 0.1 mm tolerances. This makes the Lucy Phantom an excellent fit for stereotactic treatments where high dose rates (delivered in fewer fractions) require sub-millimeter precision.
- Why should I use the Lucy 3D QA Phantom for end-to-end SRS QA?
The Lucy 3D QA Phantom is the only phantom that locks securely into most SRS frames. Additionally, Lucy CT and MR volumetric target inserts can be easily interchanged without compromising positioning. This allows for superior repeatability in each planning reconstruction test, measuring cumulative uncertainties at each stage of imaging, planning, and dose delivery as well as mechanical and geometric alignment.
- How does the 3D Volumetric Dosimetry Insert help test a treatment planning system?
The 3D Volumetric Dosimetry Insert provides a target and avoidance structure insert to challenge the ability of the TPS to accurately recreate volume targets, avoidance structures, densities and patient QA with included film inserts. The multiple targets and avoidance structures, combined with its ability to test every part of the stereotactic chain, makes this insert a valuable addition to your stereotactic QA.
