LUCY™ ThorX End-to-End SBRT QA+ Phantom

Evaluate your entire radiotherapy treatment process.

ThorX Webinar: Your SBRT QA Game-Changer

Transform your SBRT QA process with LUCY ThorX Phantom—the all-in-one solution for simulation, planning, imaging, and delivery QA. Discover how its realistic evaluation capabilities and unmatched versatility can save you time while elevating your QA standards.
WATCH

Comprehensive Evaluation

Simulation, Treatment Planning, Imaging, and Delivery QA as recommended by TG-53, TG-66, TG-142 and AAPM MPPG guidelines.

Integrated Testing

4 primary modules that are assembled using rods, of a density similar to trabecular bone, around the periphery. Various internal structures and test objects as well as external engravings and fiducials are utilized for integrated testing.

Pseudo-Anthropomorphic Anatomy

Ribs, Vertebrae, Spinal Cord, Lung, and Kidney.

Dose Verification

Measure dose with ion chambers and film. Four detector cavities and targets for Multiple Met SBRT QA.

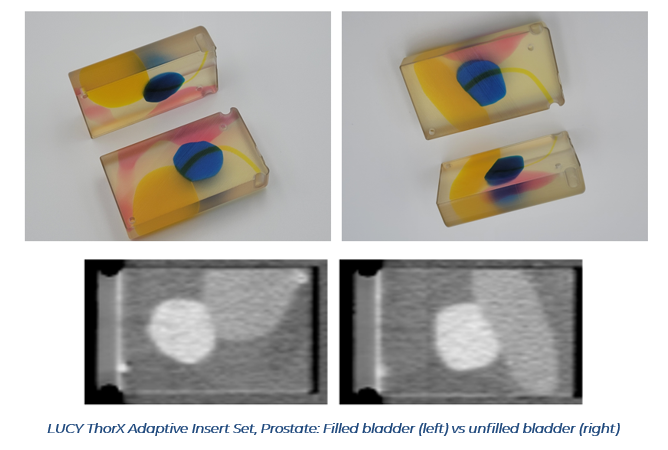

NEW! Anthropomorphic Adaptive Prostate and Spine Inserts

Enhance your LUCY™ ThorX Phantom with prostate and spine inserts designed for fast, comprehensive adaptive therapy QA. Each insert delivers both film and ion chamber measurement options—giving you clear visualization of target coverage, organ-at-risk sparing, and reliable absolute dose verification in one streamlined workflow.

Thor X DIR Inserts

CT/SIM QA

  • Laser Alignment and Orientation for gantry walls and ceiling
  • CT Couch Orientation, indexing, motion, and position
  • Slice Thickness / Profile Width and Sensitivity Profile
  • CT Number Constancy
  • Field Uniformity and Image Noise
  • Spatial and Contrast Resolution
  • Virtual SIM with Hidden Target Localization, Contouring, and Laser Movement Accuracy
Thorx new slices 1400

Treatment Planning QA

  • High-Contrast Kidney Target
  • High-Contrast Triangle Target
  • DICOM Transfer (Scan vs. Export Orientation, Position, Flip, etc.)
  • Spatial and Contrast Resolution
  • Slice Thickness
  • Field Uniformity and Noise
  • CT Number Constancy
  • In-Plane Spatial Integrity
  • Contouring, Margin Creation, DRR Spatial, Dose and DVH Accuracy
Thorx new targets 1400

Linac Imaging QA

  • DICOM and Volume Transfer Accuracy
  • Spatial Integrity Accuracy
  • TG-142 Position/Reposition, Monthly
  • MV/kV Coordinate Coincidence
  • CBCT Distortion, Spatial Resolution, Contrast, Constancy, Uniformity, and Noise
Thorx scan head 1400

Treatment Delivery QA

  • High-Contrast Kidney Target with Ion Chamber Measurement in Target and Margin
  • High-Contrast Triangle Target with Ion Chamber Measurement
  • Rotating Insert with Target bisected by Film Plane and Ion Chamber Measurement
  • Spinal Insert bisected by Film Plane
  • Target Localization Delivery Accuracy and Dose Verification
Thorx new main 1400
Video

LUCY™ ThorX Phantom Overview

Key Features

  • • Phantom Dimensions: 251mm x 320mm x 210mm
  • • Primary Material: Virtual Water
  • • Weight: 13 kg
  • • Visual Laser Alignment
  • • Geometric targets
  • • Pseudo-anthropomorphic anatomy
  • • Multiple ion chamber cavities
Thorx new main 1400

Download the LUCY ThorX Datasheet

Download
