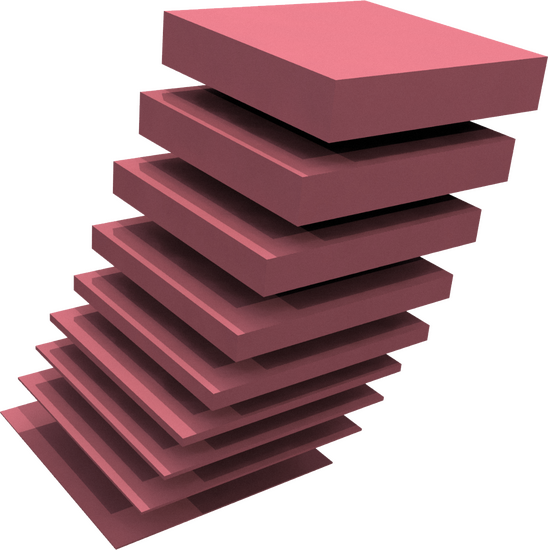

Virtual Water

An ideal alternative to traditional water phantoms for performing routine QA checks of a linear accelerator.

Setting the Standard in Water-Equivalency

  • Tested at an independent calibration laboratory and certified within 0.5% of water at photon energies.
  • Not affected by humidity or temperature and free of contaminants and air.
  • Customized cavities are available in slabs at least 2 cm thick to accommodate most ion chambers or detectors.

Specifications

Virtual Water
REF Number R301 - Virtual Water™ Phantom, 30 x 30 x 0.1 cm
R302 - Virtual Water™ Phantom, 30 X 30 X 0.2 cm
R303 - Virtual Water™ Phantom, 30 X 30 X 0.3 cm
R305 - Virtual Water™ Phantom, 30 X 30 X 0.5 cm
R310 - Virtual Water™ Phantom, 30 X 30 X 1 cm
R320 - Virtual Water™ Phantom, 30 X 30 X 2 cm
R330 - Virtual Water™ Phantom, 30 X 30 X 3 cm
R340 - Virtual Water™ Phantom, 30 X 30 X 4 cm
R350 - Virtual Water™ Phantom, 30 X 30 X 5 cm
R360 - Virtual Water™ Phantom, 30 X 30 X 6 cm
R320-Cd - Virtual Water™ Phantom, 30 X 30 X 2 cm with drilled cavity for ion chamber
R320-Cm - Virtual Water™ Phantom, 30 X 30 X 2 cm milled for parallel plate chamber
RVWP - Virtual Water™ Phantom Plug to fill cavities
RVWS - Virtual Water™ Scribe Line on Virtual Water
Density 1.03 g/cm3
Thickness Tolerance ± 0.15 mm
Length and Width Tolerance ± 0.5 mm
Physical Form Square slabs
Sizes Available 20 cm x 20 cm, 30 cm x 30 cm, 40 cm x 40 cm (standard*)
Thicknesses Available 0.2 cm, 0.3 cm, 0.5 cm, 1.0 cm, 2.0 cm, 3.0 cm, 4.0 cm, 5.0 cm, 6.0 cm (standard*)
Flatness 0.2 mm
Batch Consistency ± 0.02% (measured)
