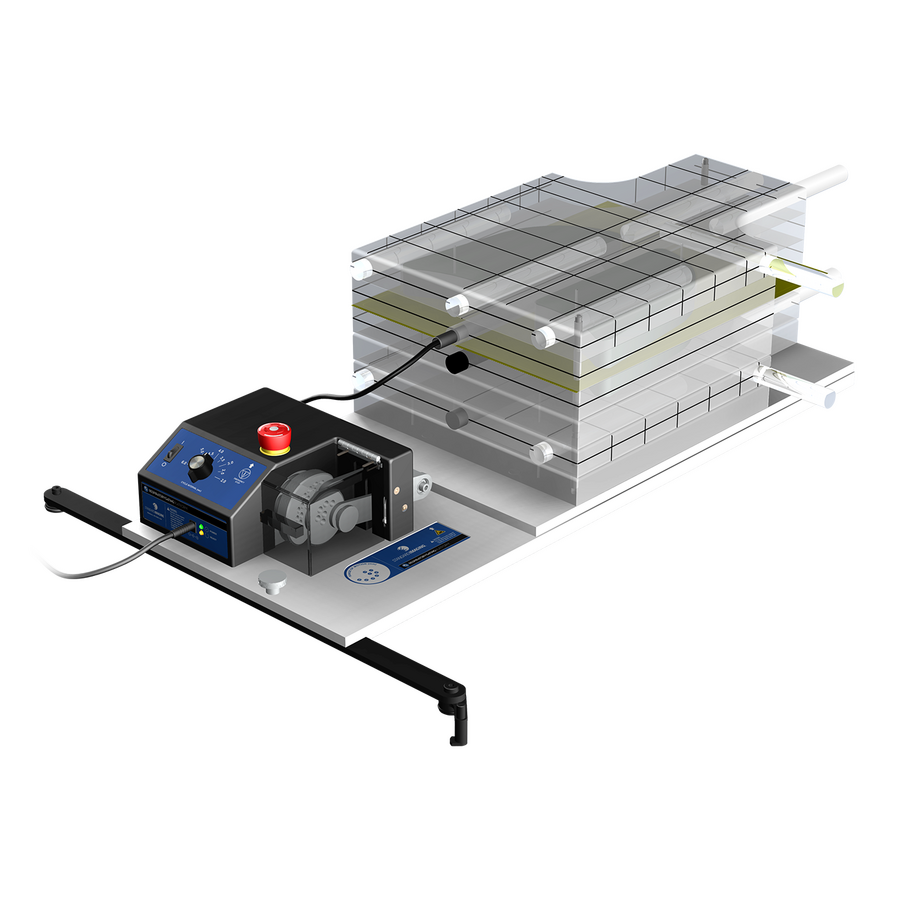

Respiratory Gating Platform Overview

Assure the Best Treatments for Patients

Commissioning and training with the Respiratory Gating Platform provides validation of the TPS and the proper administration of gated IMRT treatments.

Comprehensive System for an Easy QA Program

The Respiratory Gating Calibration System is a convenient way to quickly:

  • Perform functional verification of the accelerator’s respiratory gating features.
  • Perform dosimetric verification of respiratory gated treatments.
  • Determine errors in imaging and the radiotherapy process.

Dimensions

  • Length
    76.2 cm
  • Width
    30.5 cm
  • Height
    12.7 cm
  • Weight
    9.1 kg

Operating Parameters

  • Temperature
    10 to 40 °C
  • Relative Humidity
    20 to 80% non-condensing
  • Pressure
    650 to 770 mmHg

Storage Parameters

  • Temperatures
    -15 to 50 °C
  • Relative Humidity
    10 to 95% non-condensing
  • Pressure
    600 to 800 mmHg

Other

  • Period of Oscillation Control
    2 to 6 seconds, with 0.5 second increments
  • Accuracy
    + 0.2 second when using:
  • 4 Standard Imaging IMRT Phantom slabs (~34 lbs.)
  • 6 Standard Imaging IMRT Phantom slabs (~51 lbs.)
  • 8 Standard Imaging IMRT Phantom slabs (~68 lbs.)
  • Repeatability
    + 0.1 second for 4, 6 or 8 Standard Imaging IMRT Phantom Slabs
  • Range of Motion Control
    5 mm to 40 mm, with 5 mm increments
  • Accuracy and Repeatability
    + 0.5 mm
  • Power Requirements
    12 VDC @ 1.25 A
  • Use only with Globtek®, Inc. power supply model GTM21089-1512-T3
