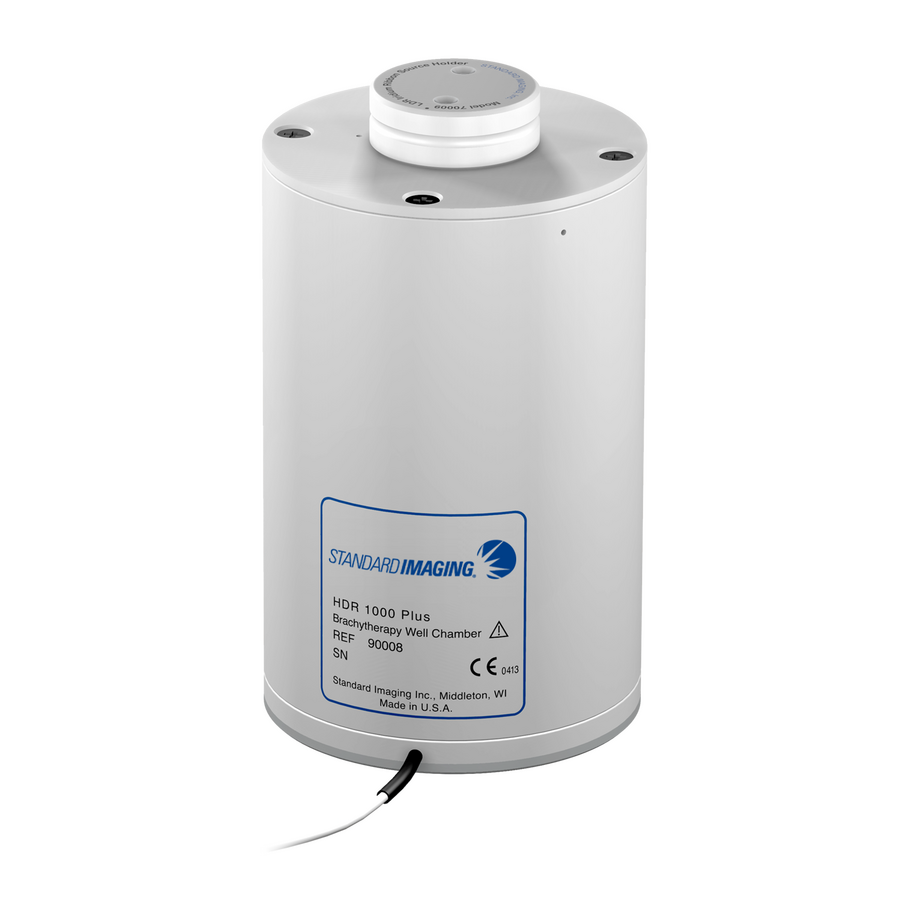

HDR 1000 PLUS Well Chamber Confidence in Brachytherapy Source Calibration
Global standard for independently verifying brachytherapy source strength.
HDR 1000 PLUS Well Chamber Overview
Precise, Accurate: An Industry Standard
Ideal for LDR and HDR brachytherapy.
Validated in over 50 scientific presentations and used by primary and secondary radiation standards laboratories worldwide. Air-communicating chamber, so there is no inaccuracy due to an undetected gas leak as in a pressurized chamber.
Perform Independent Verification
AAPM TG-56, TG-40 and TRS-398 recommend independent verification of source strengths. Without independent calibration, centers in the U.S. may be forgoing reimbursement income.
Assurance is Confidence
HDR 1000 Plus has been performance validated in more than 50 scientific presentations and is used by Primary and Secondary Radiation Standards Laboratories throughout the world. Precise and accurate calibration of HDR and LDR Iridium, Iodine, Palladium, Cesium, and Strontium brachytherapy source activities. Calibrates individual and multiple sources.
Dimensions
-
Height15.6 cm
-
Diameter10.2 cm
-
Insert Diameter3.5 cm
-
Insert Height12.1 cm
-
Weight2.7 kg
Product Standards
-
IEC 60601-1, IEC 60601-1-2
Operating Parameters
-
Temperature10 to 40 °C
-
Relative Humidity20 to 80% non-condensing
-
Pressure650 to 770 mmHg
Storage Parameters
-
Temperature-15 to 50 °C
-
Relative Humidity10 to 95% non-condensing
-
Pressure600 to 800 mmHg
Publications
-
On the stability of well-type ionization chamber source strength calibration coefficients
A radiation quality correction factor kQ for well‐type ionization chambers for the measurement of the reference air kerma rate of 60Co HDR brachytherapy sources
Quality assurance measurements for high-dose-rate brachytherapy without film
Calibration of 192Ir High Dose Rate Afterloading Systems
HDR micro-Selectron Quality Assurance Studies Using a Well-Type Ion Chamber
Quality Assurance Calibration of 125I Rapid Strand in a Sterile Environment
Calibration of Multiple LDR Brachytherapy Sources
A New Re-Entrant Ionization Chamber for the Calibration of Iridium-192 High Dose Rate Sources
