MR Grid MR Grid

MRI Geometric Distortion Phantom

MR Grid part of complete solution for: Annual QA

MR Grid Overview

Designed for Accuracy

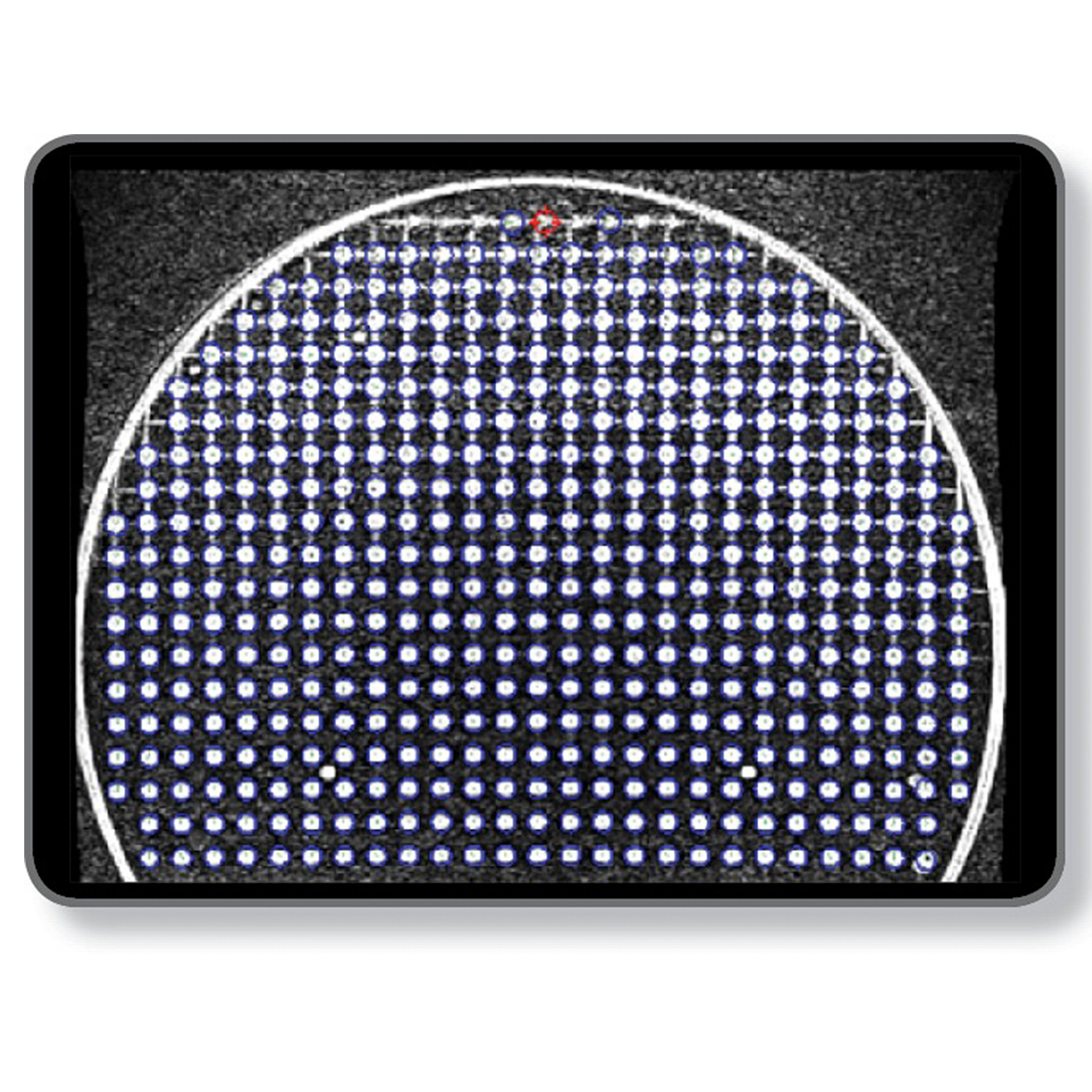

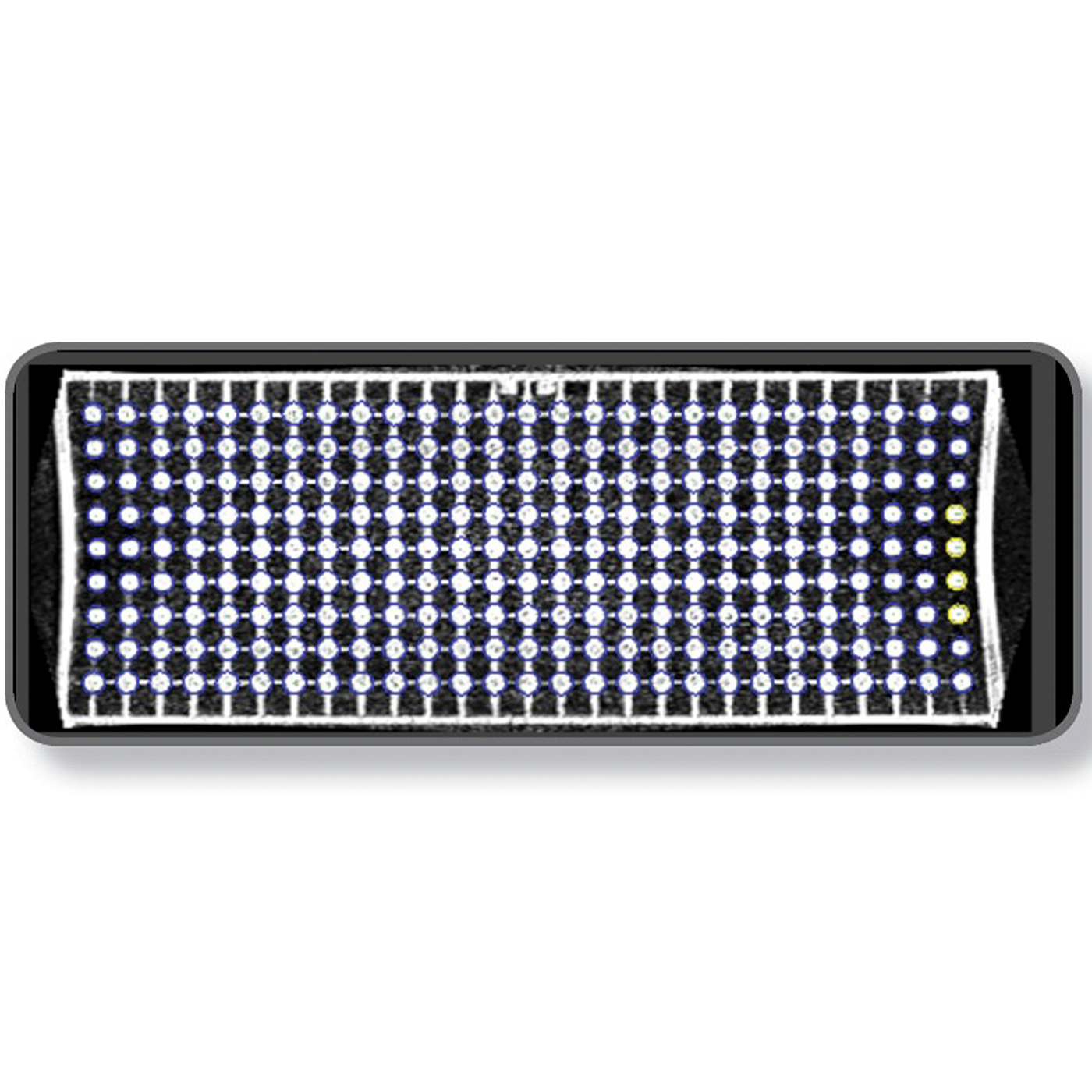

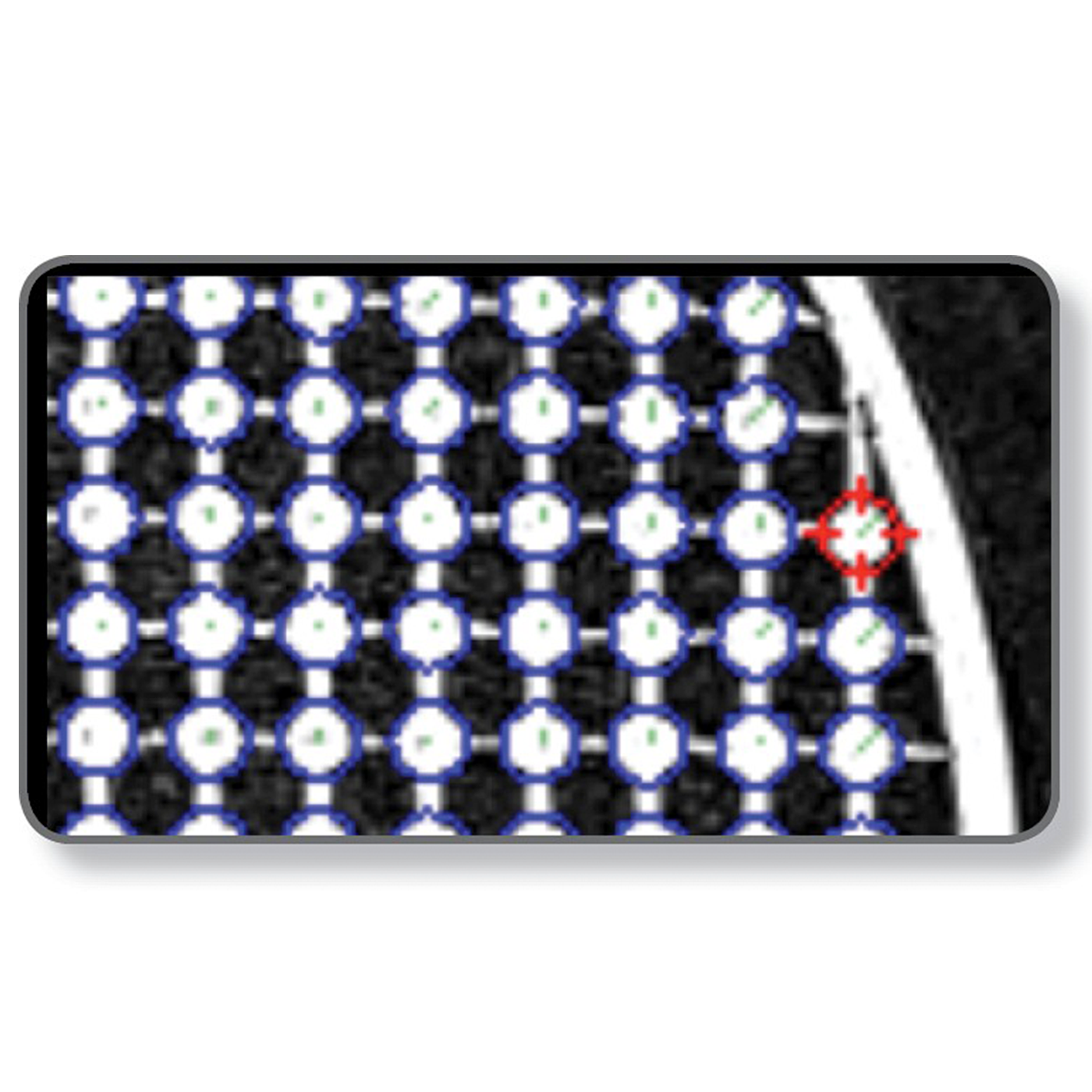

  • MR Image Distortion assessment to verify image distortion in 6 axes and identify hardware- or reconstruction-related geometric inaccuracies.

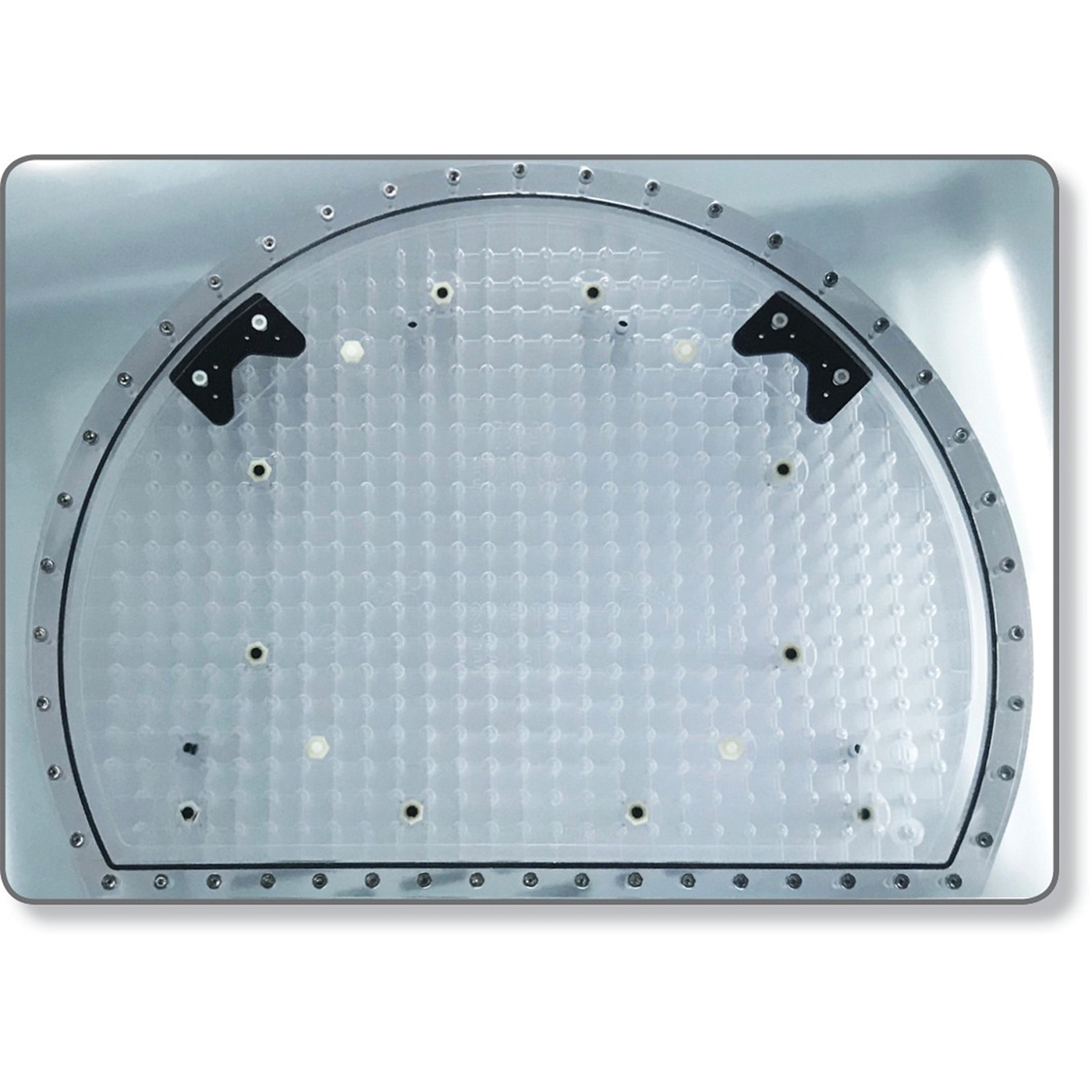

  • Comprised of 9 Image Planes with 4,689 individual Spherical Fiducials utilizing the maximum Scan Plane Field of View.

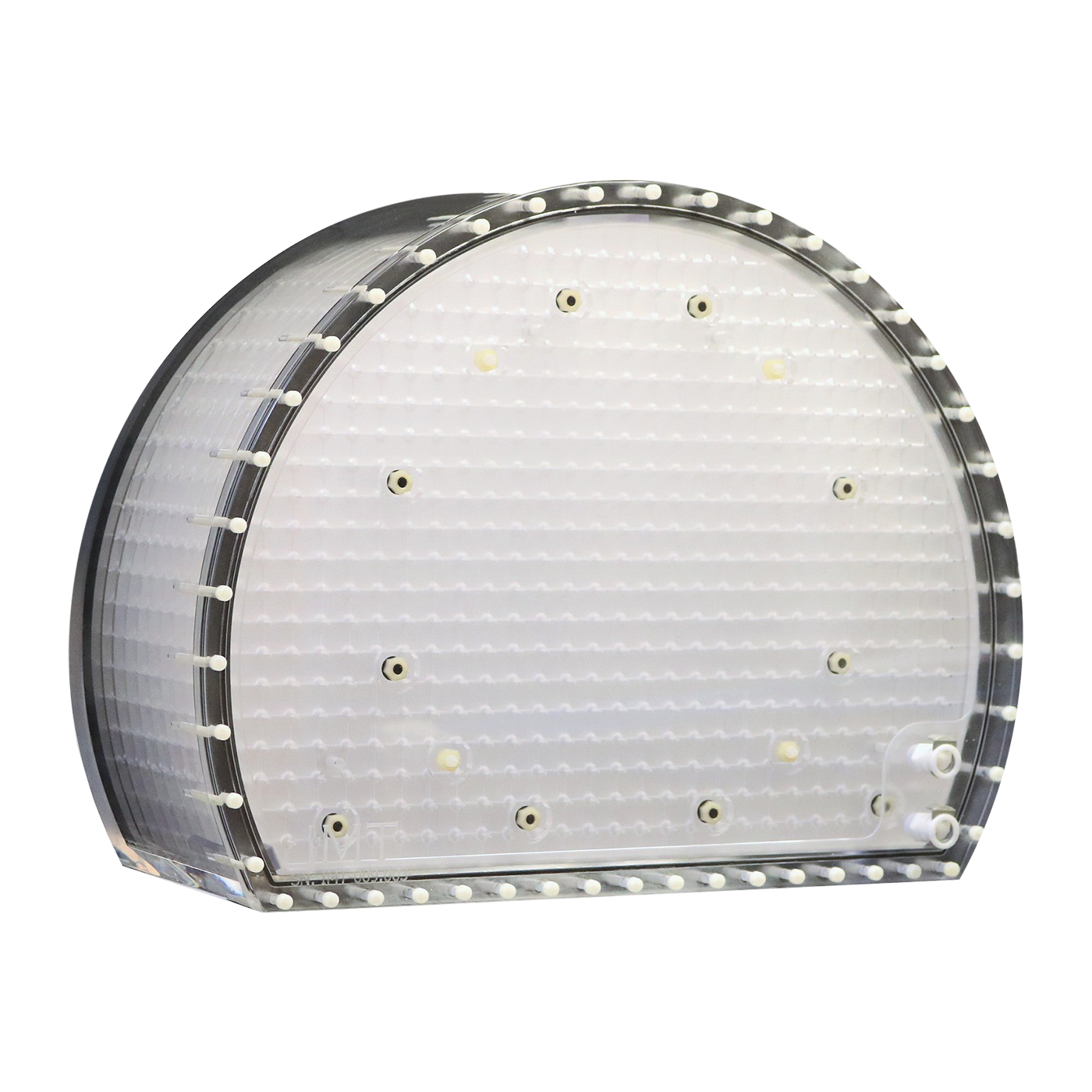

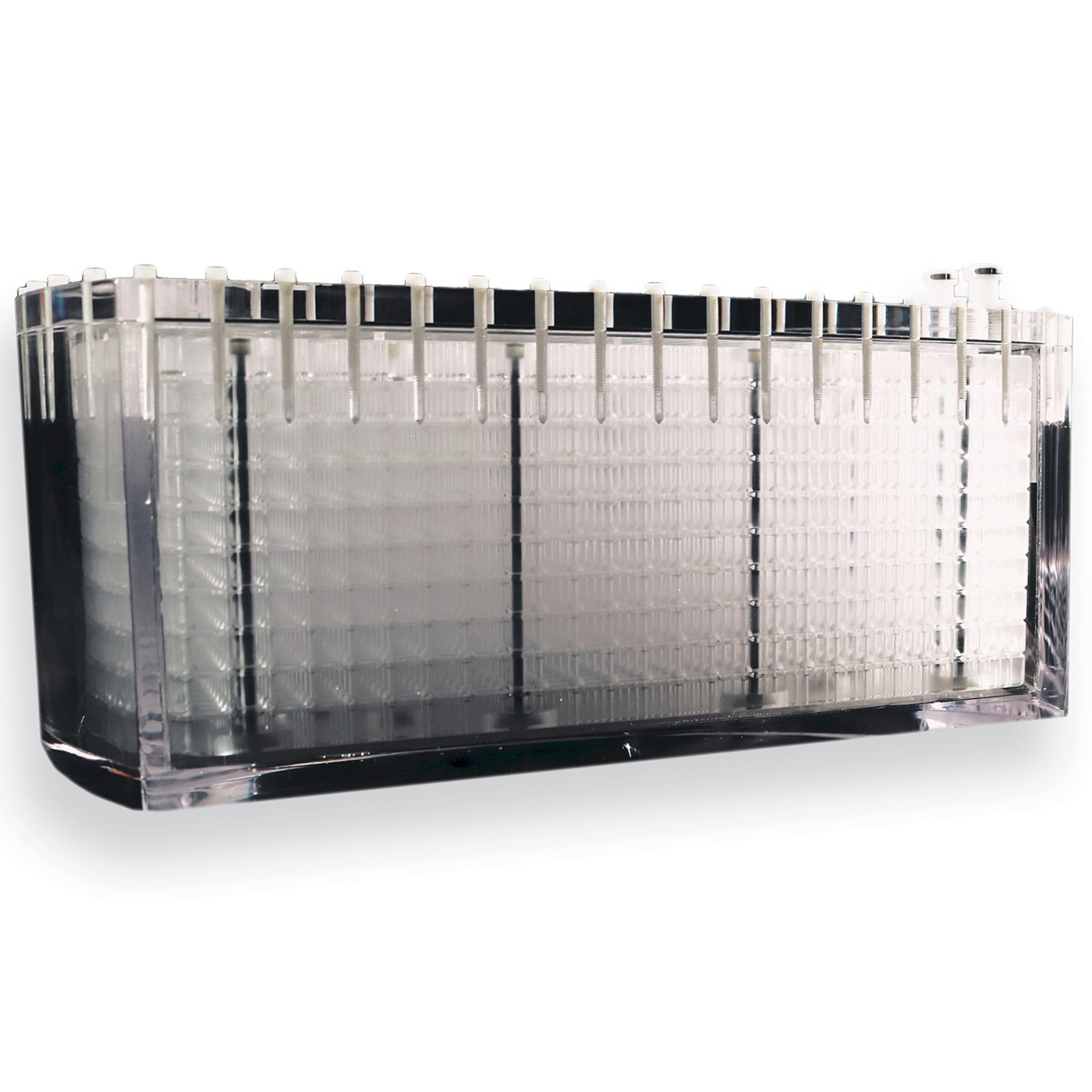

  • Solid Acrylic Construction that can be scanned in Axial, Saggital, and Coronal orientations.

MR Distortion QA

  • MR Image Distortion
  • 6 Axis Verification
  • Largest Bore Size
  • Axial, Sagittal, Coronal Orientations
  • On-Site Installation Included

iQA Auto Analysis Software included with Phantom purchase

  • Local installation, no internet required
  • Accessible from any device
  • Step-by-step protocols
  • Pass, Marginal, or Fail
  • Customizable criteria
  • Data trending
  • Scheduling and email reminders

  • Physical Size
    465x350x168
  • Weight (Filled)
    40 kg
  • Diameter
    8 mm, Center-to-Center 16 mm (+/- 0.1mm)
