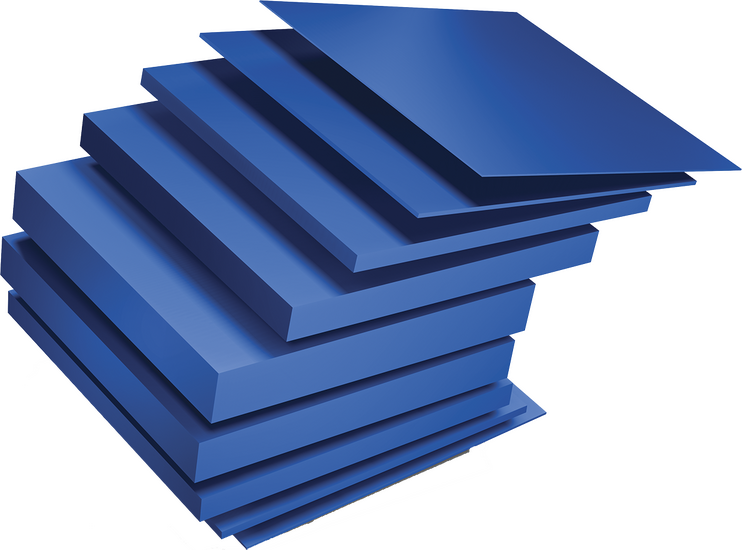

Blue Water Phantom

Fast, easy-to-setup alternative to water phantoms for routine checks of linac photon beams.

The Standard in Water Equivalency

  • Water-equivalent material within 1.0% for photons.
  • Exceptionally strong slabs will not stick together when stacked or stored.
  • Not affected by changes in temperature or humidity.

Unique Chamber Slab Design

Instead of having multiple slabs for each thimble type ion chamber, a single slab is used with interchangeable ion chamber plugs.

Specifications

Blue Water Phantom
REF Number 70402 - Blue Water Phantom, 30 x 30 x 0.2 cm
70403 - Blue Water Phantom, 30 x 30 x 0.3 cm
70405 - Blue Water Phantom, 30 x 30 x 0.5 cm
70410 - Blue Water Phantom, 30 x 30 x 1 cm
70420 - Blue Water Phantom, 30 x 30 x 2 cm
70430 - Blue Water Phantom, 30 x 30 x 3 cm
70440 - Blue Water Phantom, 30 x 30 x 4 cm
70450 - Blue Water Phantom, 30 x 30 x 5 cm
70460 - Blue Water Phantom, 30 x 30 x 6 cm
70421 - Blue Water Phantom, 30 x 30 x 2 cm with blank cavity & plug with cavity drilled for ion chamber of choice (contact Standard Imaging)
70490 - Blue Water Phantom Plug with cavity for A1 & A14
70491 - Blue Water Phantom Plug with cavity for A1SL & A14SL
70492 - Blue Water Phantom Plug with cavity for A12
70493 - Blue Water Phantom Plug with cavity for A16
70494 - Blue Water Phantom Plug with cavity drilled for ion chamber of choice
70495 - Blue Water Phantom Plug (to fill cavity)
Density 1.09 g/cm3
Thickness Tolerance ± 0.15 mm
Length and Width Tolerance ± 0.5 mm
Physical Form Square slabs
Sizes Available 20 cm x 20 cm, 30 cm x 30 cm (standard*)
Thicknesses Available 0.2 cm, 0.3 cm, 0.5 cm, 1.0 cm, 2.0 cm, 3.0 cm, 4.0 cm, 5.0 cm, 6.0 cm (standard*)
