Exradin^® W2MR Scintillator System

Name: Exradin® W2MR Scintillator System
SKU: exradin-w2-scintillator-system
Availability: InStock

The W2 fiber is constructed of completely non-ferrous materials so it can be used for radiation dose measurements in an MR-linac or MR-irradiator. A specific configuration of the W2 with longer optical fibers is available for use in these treatment devices. The longer fiber provides flexibility for a variety of measurement configurations while ensuring that the MAX SD can remain outside the 5 Gauss region of the magnetic field.

Exradin® W2MR Scintillator System part of complete solution for: Annual QA Stereotactic

Exradin® W2MR Scintillator System Overview

AAPM/IAEA TRS 483 states the scintillator is the only detector with a kQ of 1.000, making the W2 the ideal SRS detector.
All corrections are built in.
Inherently waterproof.
Water equivalent.

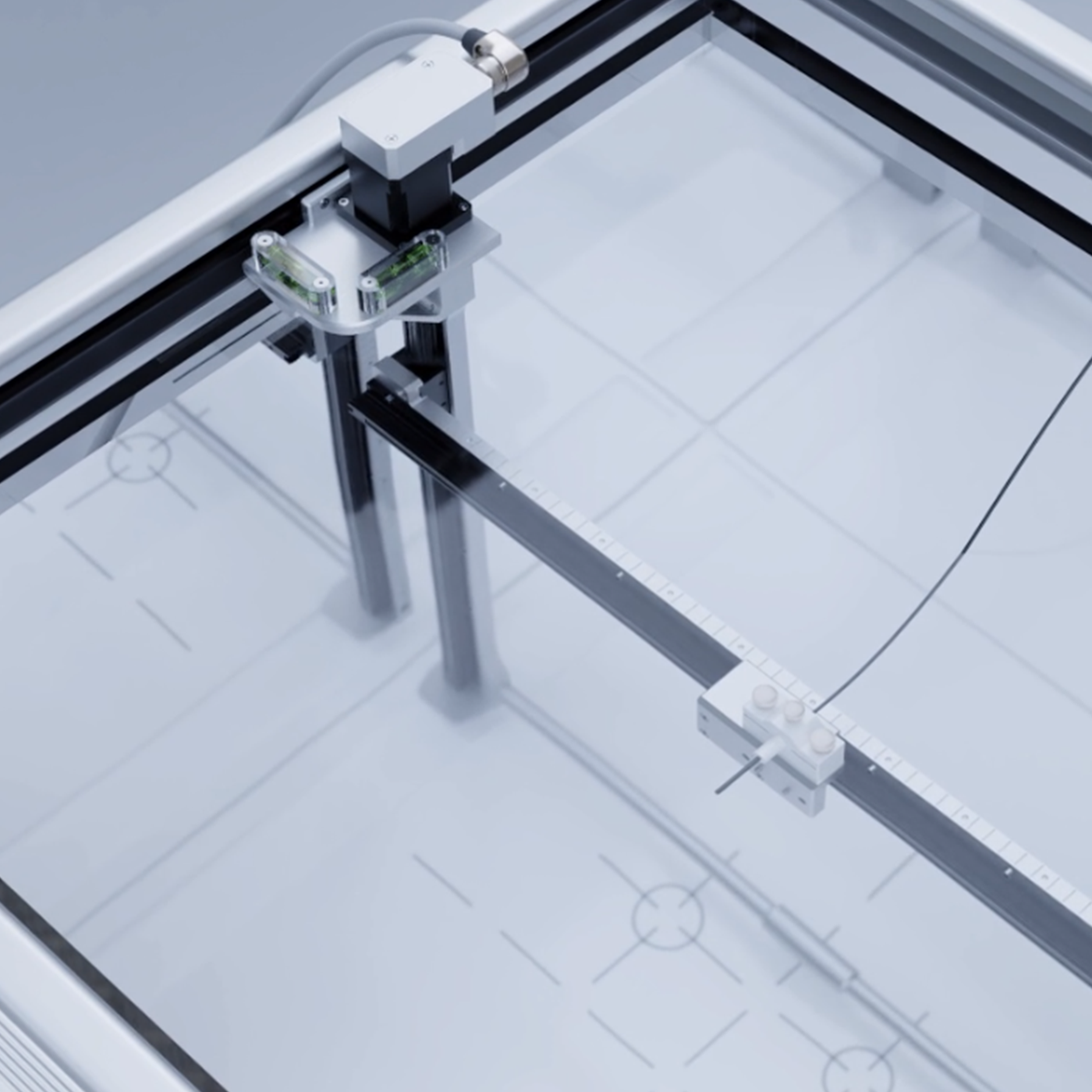

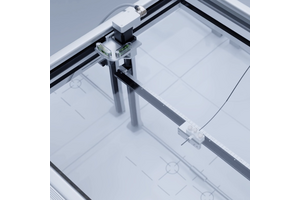

Can be used for both water scanning and point dosimetry.
User replaceable fiber, includes both 1x1 mm and 1x3 mm.
No dose rate, temperature, or energy dependencies.
The W2 system features Čerenkov corrected measurement signals that can be converted to a proportional analog output, which can be read by any electrometer. This allows the W2 system to be connected to a water phantom system for scanning.

Publications

Development of a high-resolution two-dimensional detector-based dose verification system for tumor-tracking irradiation in the CyberKnife system

Monte-Carlo calculation of output correction factors for ionization chambers, solid-state detectors, and EBT3 film in small fields of high-energy photons

A novel Monte Carlo (MC) dose model for small MLC fields of the cyberknife® M6TM radiosurgery system using the EGSnrc

Technical note: Consistency of IAEA's TRS-483 and AAPM's extended TG-51 protocols for clinical reference dosimetry of the CyberKnife M6 machine

Total skin electron therapy vertical profiles measured using radiochromic film

Implementation of superficial radiation therapy (SRT) using SRT-100 Vision™ for non-melanoma skin cancer in a Radiation Oncology clinic

Commissioning, clinical implementation, and initial experience with a new brain tumor treatment package on a low-field MR-linac

Evaluation of commercial devices for patient specific QA of stereotactic radiotherapy plans

AAPM WGTG51 Report 374: Guidance for TG-51 reference dosimetry

Treatment planning system commissioning of the first clinical biology-guided radiotherapy machine

Limits for the therapeutic application of the analytical anisotropic algorithm in the context of ablative lung radiotherapy near the minima of lung density and tumor size

Commissioning an Exradin W2 plastic scintillation detector for clinical use in small radiation fields

Technical note: Determining equivalent squares of high-energetic photon fields

Extending the EclipseTM AcurosXB output factor table for small field radiosurgery

Nontoxic electron collimators

Beam commissioning of the first clinical biology-guided radiotherapy system

Small-field beam data acquisition, detector dependency, and film-based validation for a novel self-shielded stereotactic radiosurgery system

Measuring small field profiles and output factors with a stemless plastic scintillator array

Replacing gamma knife beam-profiles on film with point-detector scans

Commissioning a multileaf collimator virtual cone for the stereotactic radiosurgery of trigeminal neuralgia

Videos

Webinars

Jun 1st, 2023 / Truly Water Equivalent Detectors

Exradin Scintillators are ideal for commissioning SRS and SBRT. Invisible to the beam and providing measurement resolution down to 1x1mm, these detectors are exactly what you need to have confidence in your small field commissioning.

Mar 9th, 2023 / Tools for Scanning Small Fields

Small fields have met their match. The Exradin Scintillators ensure the tightest treatment margins are delivered safely to patients. Discover the advantages of using these detectors that are invisible to the beam and water equivalent.

Feb 16th, 2023 / The Small Field Detector

Ideal for commissioning of SRS and SBRT techniques, the Exradin W2 Scintillator has a point dosimetry measurement down to 1x1mm. Measure your smallest fields accurately with this detector that’s completely invisible to the beam.

Jan 12th, 2023 / The Detector Everyone’s Talking About

Invisible to the beam, water equivalent, and a point dosimetry measurement down to 1x1mm: Exradin W2 Scintillator. Ideal for commissioning of SRS and SBRT techniques, measure your small fields accurately with this detector.

Aug 11th, 2022 / The Detector Everyone’s Talking About

Mar 3rd, 2022 / Water Equivalence is Key

Small fields have met their match. The Exradin W2 Scintillator has unbeatable water equivalence to help you overcome the complexities of measuring small fields. Join us March 3^rd at 10:00 am CST to learn how this detector conquers small field challenges.

Nov 18th, 2021 / Output Constancy of the W2 Scintillator in Flattening Filter Free Fields

Beam characteristics of FFF fields make detectors with small volume and dose rate independence extremely important for accurate beam characterization. Join us with Dr. Sara Thrower as she presents her work characterizing the W2 detector as a function of dose per pulse and pulse repetition rate in FFF beams.

Sep 2nd, 2021 / Tools for Small Fields

Small field measurements remain a daunting challenge for many physicists. Join us on September 2^nd at 10:00am CDT to learn about the array of solutions we offer to help you meet and conquer this unique challenge.

Jul 26th, 2021 / Small Field Measurement with MR compatibility

New! Your favorite water equivalent detector just got better! Now available in a configuration designed for use with MR-linacs, the Exradin W2MR Scintillator easily handles tight treatment fields. Part of our AAPM webinar series.
