Patient QA

IMSure 3D^™ Software IMSure 3D™ Software

Name: IMSure 3D™ Software
SKU: imsure-3d-software
Availability: InStock

Automated second-check Monte Carlo based QA software.

IMSure 3D™ Software part of complete solution for: Patient Dosimetry

IMSure 3D™ Software Overview

Monte Carlo Accuracy

The Monte Carlo algorithm is the gold standard for patient specific QA calculation accuracy. Custom machine-specific beam models ensure the highest accuracy.

Absolute Automation

Automated, time-saving workflow produces 3D dose calculations in minutes with reliable results regarding treatment plan quality.

Quick Calculations

Proprietary multi-core CPU based variance reduction allows for calculation times of around a minute.

Time-saving QA Routine

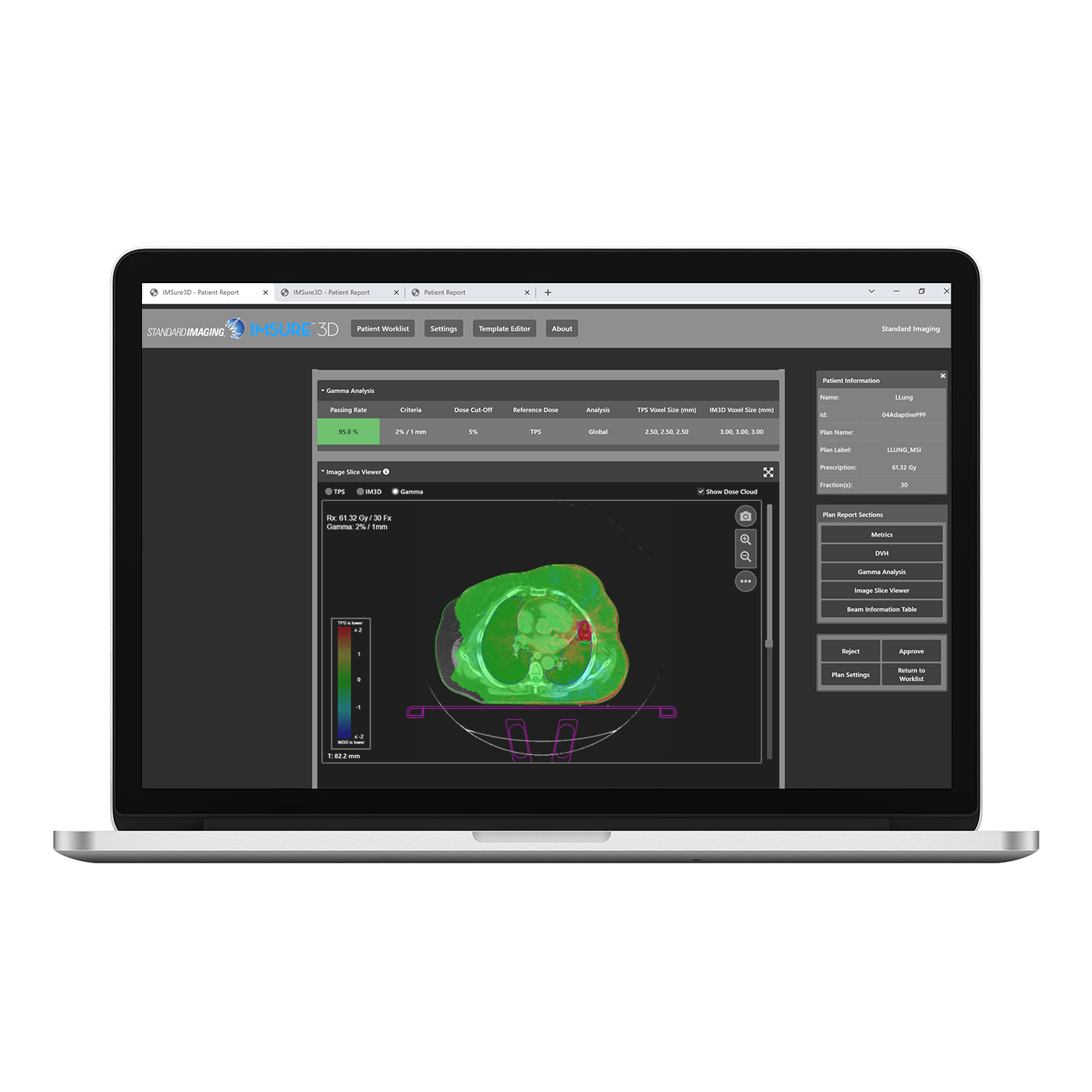

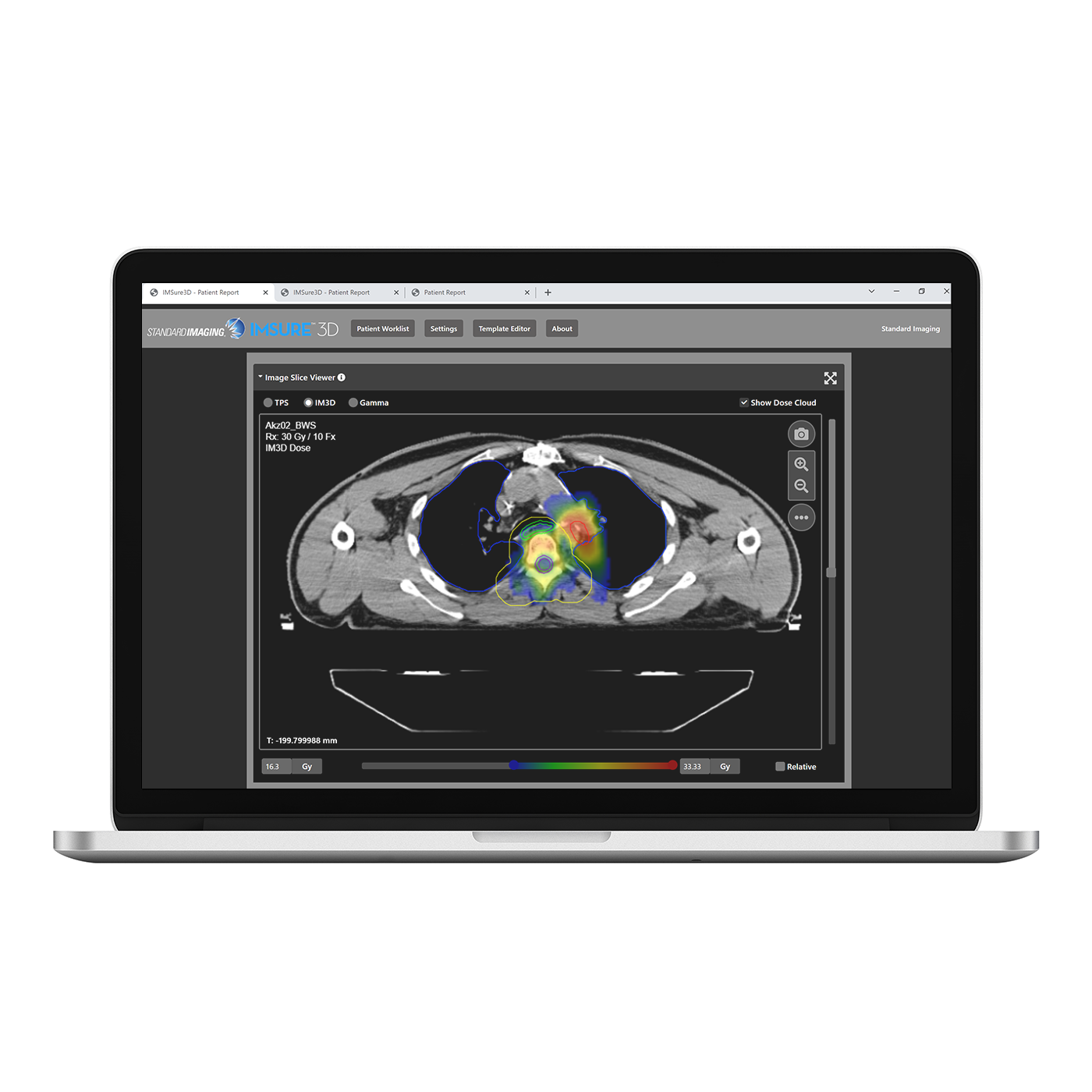

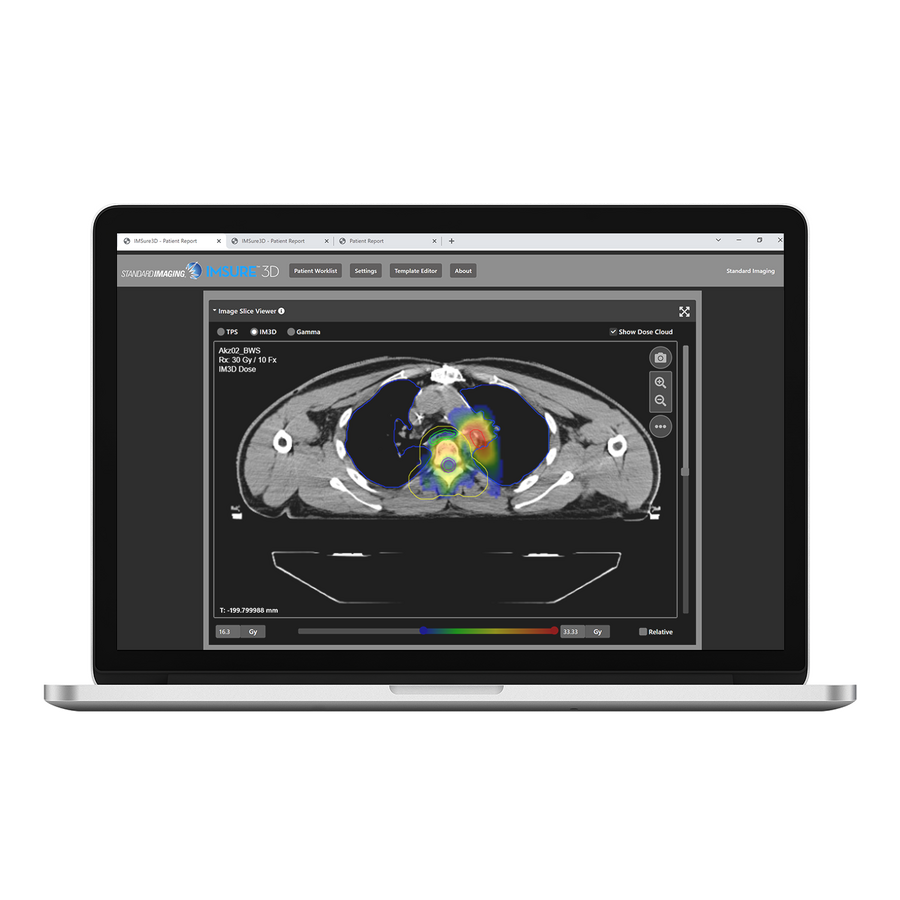

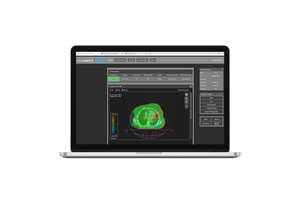

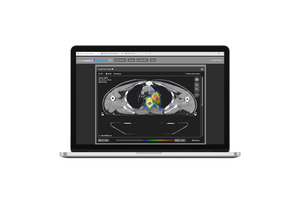

Software easily identifies errors and provides tools for an intuitive, comprehensive analysis. Quickly and easily assess plans from anywhere using the web-based interface.

Supports all major treatment machines:

Elekta®
Varian® (including Halcyon™ and Ethos™)
Siemens®
Accuray®
TomoTherapy®
Radixact®
CyberKnife®-systems
ZAP-X®

For optimal system performance, the following are the recommended specifications for the server on which IMSure 3D™ Software will be installed:

CPU

x64-based processors 8C/16T, 1.4 GHz or faster
RAM

20 GB of RAM
Free Hard Disk Space

20 GB (installation)
Operating System

Windows** Server 2012 R2 Standard or newer with IIS enabled (**Windows is a registered trademark of Microsoft Corporation.)
Software

.NET 4.6.2, .NET 3.5 (Windows Server 2016+) IIS
Database

Microsoft SQL Server 2012 Standard or newer
Monitor

Medical grade with minimum native display resolution of 1024x768 and 32-bit color
Input Device

Standard keyboard and wheeled mouse
Language

English (US) or English (UK)

The following are the minimum recommended specifications* for the server on which IMSure 3D™ Software will be installed:

CPU

x64-based processors 4C/8T, 1.4 GHz or faster
RAM

12 GB of RAM
Free Hard Disk Space

20 GB (Installation)
Operating System

Windows** Server 2012 R2 Standard or newer with IIS enabled
Software

.NET 4.6.2, .NET 3.5 (Windows Server 2016+) IIS
Database

Medical grade with minimum native display resolution of 1024x768 and 32-bit color
Input Device

Standard keyboard and wheeled mouse
Language

English (US) or English (UK)
*Minimum specifications will allow users to run typical patient data using a “Fast” Minimum Uncertainty setting with a grid voxel size of 3mm x 3mm x 3mm.

IMSure 3D calculates dose for 3D conformal, IMRT, VMAT, SRS, SRS cones, SBRT (MLC-shaped treatment fields for photon plans), TomoTherapy, Halcyon, Electron, ZAP-X, and CyberKnife (cones, Iris, and MLC) plans. The following requirements are stipulated:

All beams of a treatment plan are assumed to be delivered by the same treatment machine.
All control points of a single beam are assumed to be delivered with the same beam energy.
DICOM plans that do not adhere to these stipulations are rejected.

Publications

Validation of the Acuros XB dose calculation algorithm versus Monte Carlo for clinical treatment plans

J Applied Clin Med Phys 2020 Milder Commissioning and clinical implementation of the first commercial independent

Validation of a secondary dose check tool against Monte Carlo and analytical clinical dose calculation algorithms in VMAT

First fully automated planning solution for robotic radiosurgery comparison with automatically pla

Evaluation of Machine Log Files MC based Treatment Planning and Delivery QA as Compared to Arc CHECK QA

Evaluation of 4 Hz log files and secondary Monte Carlo dose calculation as patient specific quality assurance for VMAT prostate plans

Commissioning and clinical implementation of the first commercial independent Monte Carlo 3 D dose calculation to replace Cyber Knife M6 patient specific QA measurements

Videos

Webinars

Nov 16th, 2023 / QA Essentials: Comprehensive Patient Dosimetry

The QA Essentials webinar series continues with a focus on comprehensive patient dosimetry within your clinic. We take a look at solutions that help you offer the highest in quality patient treatments: New features on our Adaptivo software, our Monte Carlo Second Check software, IMSure 3D, and LinacView software’s machine performance analysis during treatments.

Jun 29th, 2023 / The Gold Standard in Accuracy

Get a look at our brand-new software, IMSure 3D™: an automated second check with Monte Carlo accuracy for independent patient-specific QA. The time-saving workflow produces 3D dose calculations in minutes with reliable results regarding treatment plan quality.

Oct 13th, 2022 / Gold Standard in Accuracy

Get a look at our brand-new software, IMSure 3D: an automated second check with Monte Carlo accuracy for independent patient-specific QA. The time-saving workflow produces 3D dose calculations in minutes with reliable results regarding treatment plan quality. *CE Mark Pending
