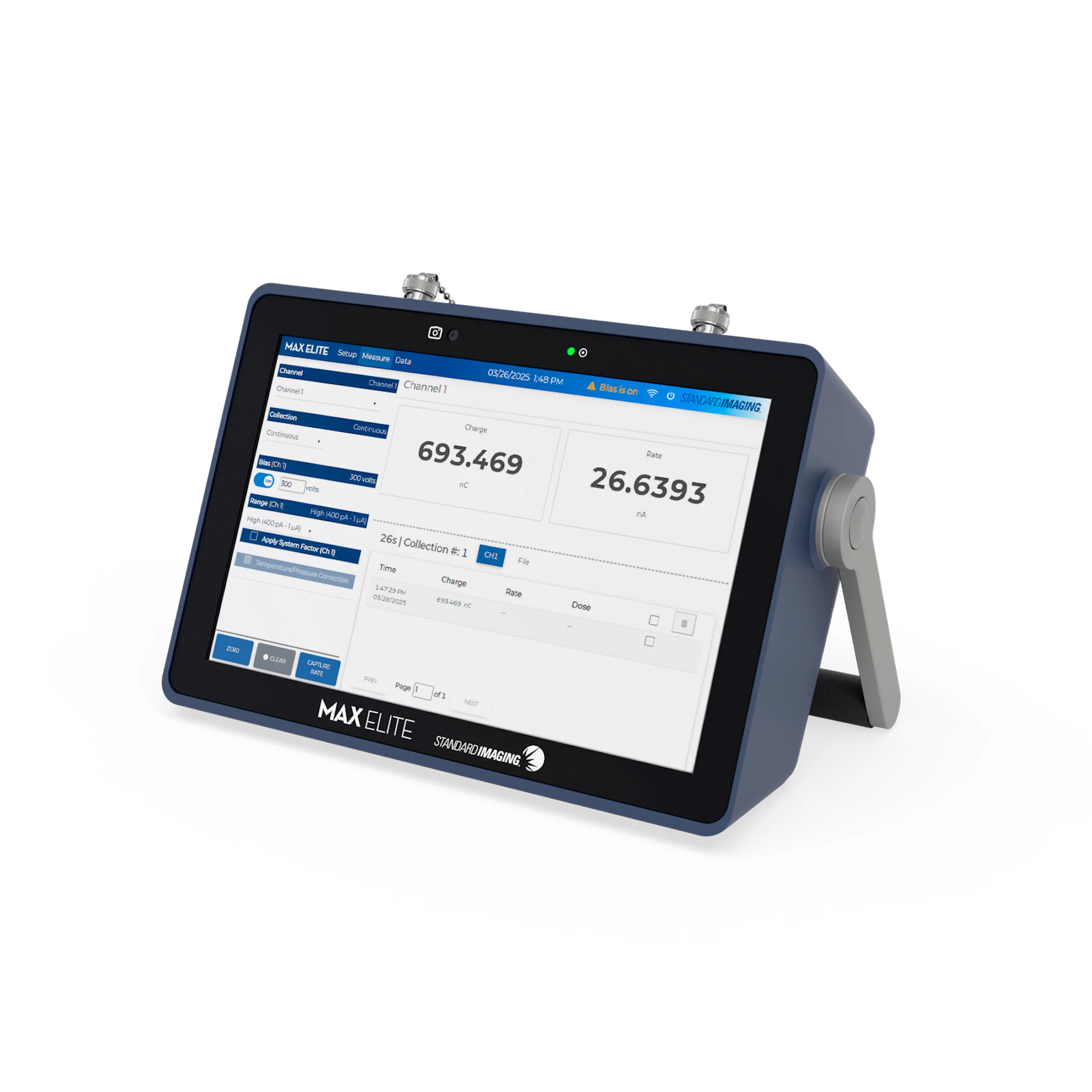

Channels
1, 2, or 4 channels – factory configurable.
-
Measuring Range IEC60731 Reference Class
LOW: 0.4000 pA - 1.0000 nA, 0.4000 pC – 100 mC
-
HIGH: 0.0400 nA - 1.0000 µA, 0.0400 nC – 100 C
-
Bias Voltage
0, (±) 10 - 1000 V in 1 V increments
-
10-24VDC +/- 10%
-
25-49VDC +/- 5%
-
50-1000VDC +/-1%
-
1 uA max
-
Range Switching
User selectable – High and Low
-
Repeatability
Low range: <= +/-0.25%
-
High range: <= ± 0.15%
-
Long Term Stabilization Time
<= ± 0.5% over 1 year
-
Stabilization Time
<= ± 0.1%
-
Non-Linearity
<= ± 0.25%
-
Zero Drift
<=: ± 0.25%
-
Zero Shift
<= ± 0.25%
-
Response Time (90%)
Low range rate: 2.20 seconds, High range rate: 2.20 seconds.
-
Low range charge: 1.95 seconds, High range charge: 0.26 seconds
-
Main Software Functions
Individual measurement for Channel 1, Channel 2, Channel 3, or Channel 4; Channel 1 & 2 measurement; Four Channel measurement; Chamber Library; Check Source Database; Preferences
-
Charge Collection Modes
Timed Mode - Selectable timer from 1 to 86400 seconds in 1 second increments. 500 repeated collections.
-
Continuous Mode (Manual Start/Stop) - Press Start to begin collection and Stop to end
-
Trigger Mode – current exceeding pre-selected trigger values starts measurement, and current below pre-selected stop trigger value stops collection
-
Countup/Countdown Resolution
1 Second
-
Trigger Levels for Charge Collection
Start value must be larger than stop value. Low Range 10fA – 1nA. High Range 10pA – 10nA
-
Operating Parameters: Temperature
15 to 35 °C
-
Operating Parameters: Relative Humidity
20 to 80% non-condensing
-
Storage Parameters: Temperature
-15 to 50 °C
-
Storage Parameters: Relative Humidity
10 to 95% non-condensing
-

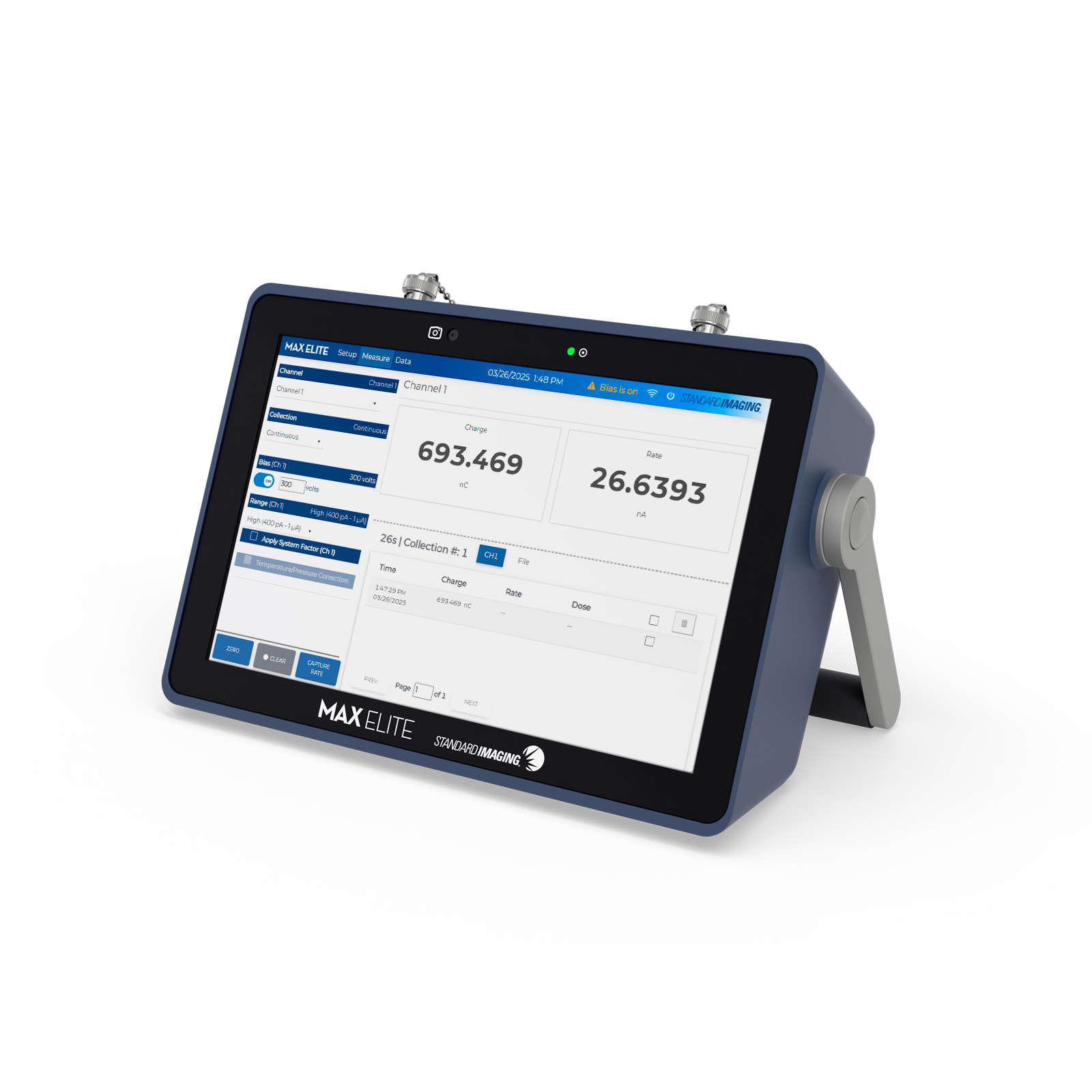

Display
Color LCD IPS touch screen. WXGA (1280x800) resolution, 10.1” diagonal
-
Code Reader
Data Matrix Code Reader
-

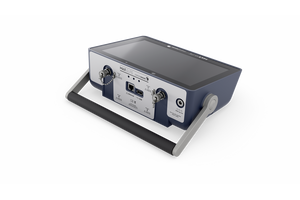

Input Connection
BNC two lung triaxial connectors (TNC option is available)
-
Zeroing
Zero via button push - Display indicates zeroing in progress 1-30 seconds.
-

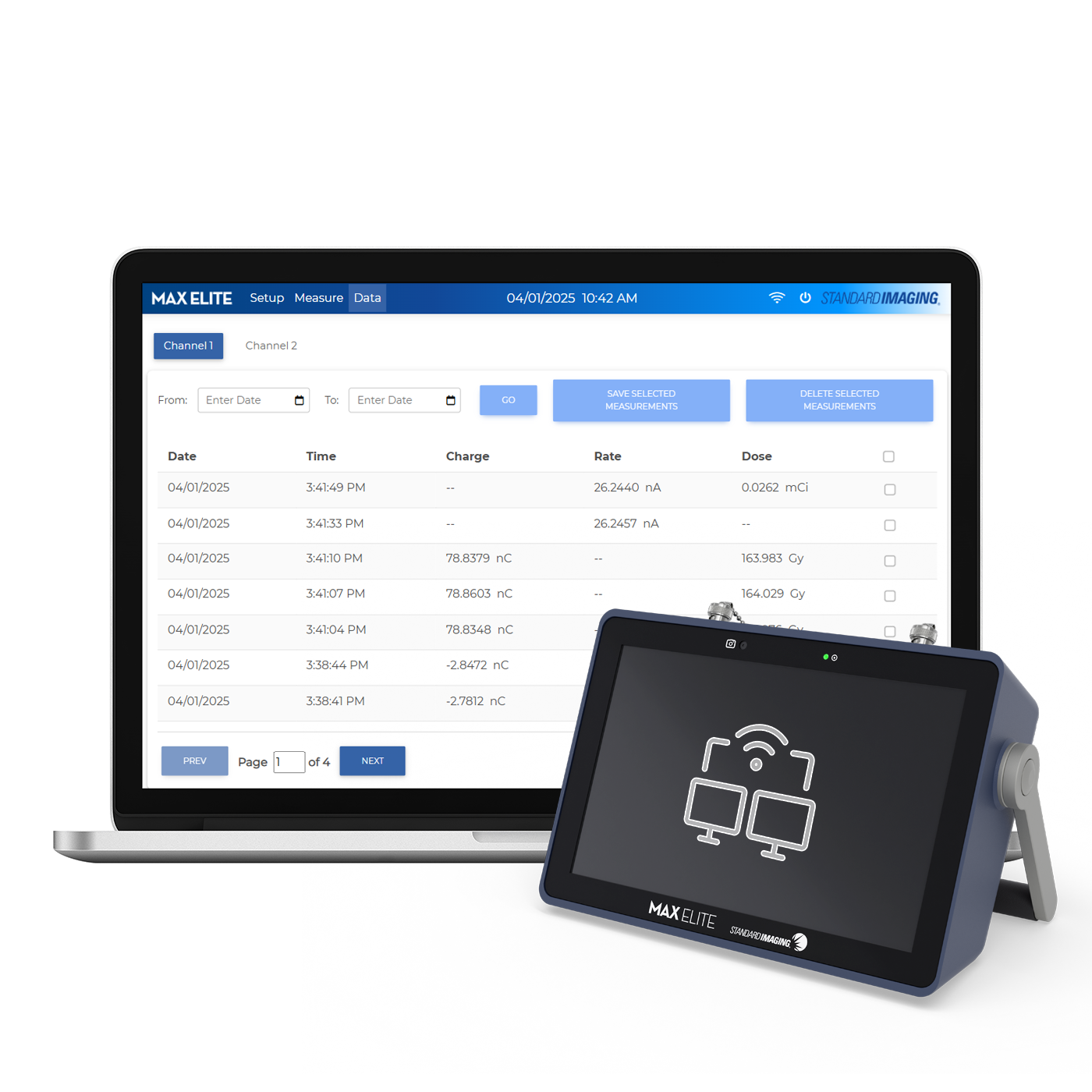

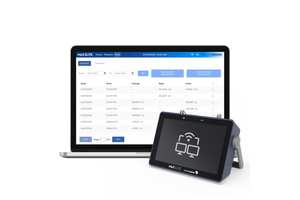

Connectivity
Ethernet 10/100Mbit
-
USB 2.0 (keyboard, flash drive, or mouse support)
-
Wi-Fi Dual Band 2.4/5GHz, 802.11ac/a/b/g/n.
-
Real-Time Clock
On board, for timekeeping and data time stamp
-
Audio
On board speaker for audio feedback
-
Mode of Operation
Continuous, Timed, or Triggered
-
Power Requirements
100-240 VAC, 50/60 Hz input to external power supply, 9 VDC, 2.0 A power supply output to electrometer input, Globtek®, Inc. model GTM 96180-1811-2.0-T.
-
The use of any other power supply and using alternates other than the UL/CSA recognized power cord can degrade minimum safety. The proper replacements from Standard Imaging, Inc. are required for compliance with the requirements of IEC 60601-1.
-
Product Standards
IEC 60601-1-2 Edition 4.1:2020
-
IEC 60601-1-6:2010/AMD2:2020, IEC 60601-1:2005/AMD2:20201
-
IEC 60731 (Reference Class)2
-
1 Externally Certified; 2 Designed to Meet
-
Selectable Display Resolution
LOW: Rate mode/Charge mode: 0.001 pA / 0.001 pC or 0.0001 pA / 0.0001 pC
-
HIGH: Rate mode/Charge mode: 0.001 nA / 0.001 nC or 0.0001 nA / 0.0001 nC
