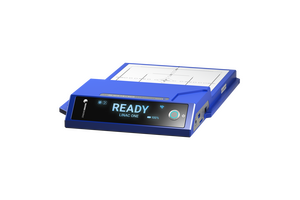

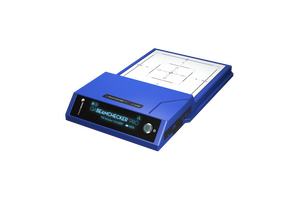

QA BeamChecker^™ Pro

Name: QA BeamChecker™ Pro
SKU: qa-beamchecker-pro
Availability: InStock

Maximize the efficiency of your essential daily linac performance checks using the power of automatic energy detection, standalone operation, and Wi-Fi connectivity.

QA BeamChecker™ Pro part of complete solution for: Daily QA

QA BeamChecker™ Pro Overview

One Setup. All Energies.

No more flipping! Test 10x10 and 20x20 cm fields! Measure photon, FFF, and electron energies without repositioning.

Next Gen QA Hardware

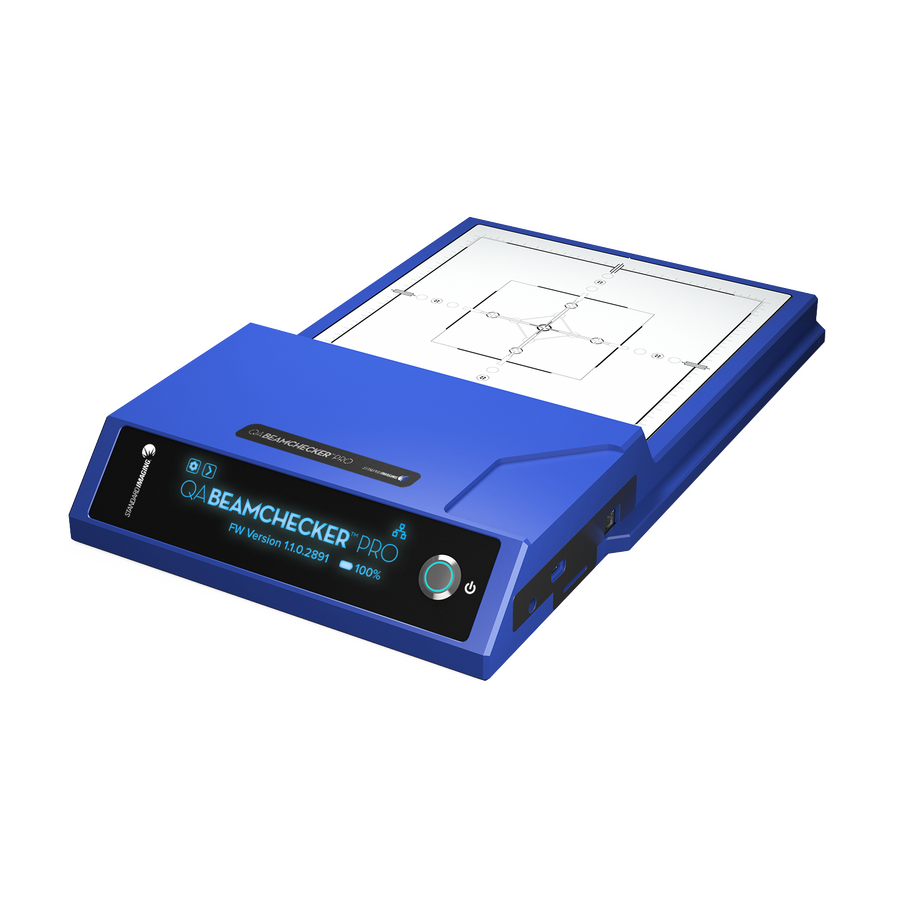

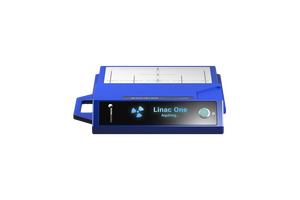

The only 5.5 inch device touchscreen for quick setup, immediate access to device details and diagnostics, and instant display of measurement activities.
30 detectors, 9 hour rechargeable battery, secure Wi-Fi enabled

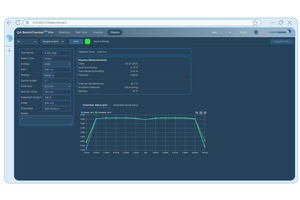

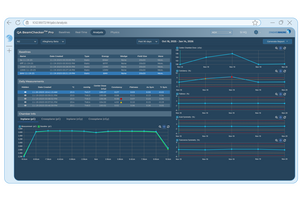

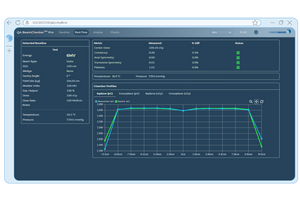

Next Gen QA Software

All new software developed for today’s clinical workflows in the most efficient manner with a single unified database for all your devices.

Standalone Operation

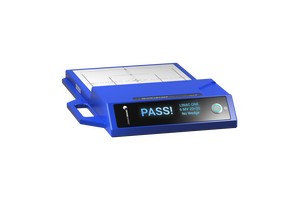

Software-free and cable-free use delights therapists with instant pass/fail results, automatically storing 10,000+ data points for in-depth physics analysis.

Display

5.5-inch OLED capacitive touch screen, 256x64 Dot Matrix
Dimensions

Height 6.0 cm (2.36 in) // Width 30.5 cm (12.0 in) // Length 42.5 cm (16.74 in) // Weight 5.7 kg (12.6 lbs)
Device Memory Capacity

Stores up to 650 measurements before transfer required

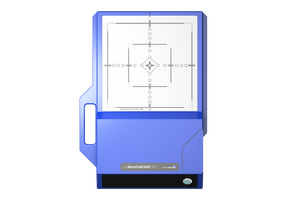

29 Vented Ionization Chambers, Fully Guarded

1 center detector // 16 quadrant detectors (7.0 mm Ø) // 4 energy identification chambers (7.0 mm Ø) // 8 linear detectors (3.1 mm x 12.4 mm)
Chamber Volume

0.077 cc
Parallel Plate Separation

2.0 mm
Collection Electrode

0.7cm diameter
Inherent Water-Equivalent Buildup

1.3 cm
Electronics Dose Monitoring Diode

1
Supported Energies

Photons (filtered and FFF) 60Co to 25 MV // Electrons 4 MeV to 25 MeV
Dose Rate

Minimum: 50 MU/minute // Maximum: 2400 MU/minute
Field Sizes

10 cm x 10 cm and 20 cm x 20 cm
Battery

Rechargeable LiFePO4 - approximately 8 hours of continuous use
Charger Input

90 – 240 VAC, 50-60 Hz, EN/IEC 60601-1 approved
Connectivity

Ethernet for Static and DHCP; Wi-Fi for DHCP only

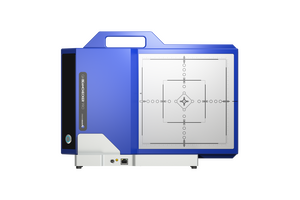

Power/Data Cradle

Height 8.3 cm (3.26in) // Width 10.2 cm (4.00 in) // Length 29.2 cm (11.50 in) // Weight 1.6 kg (3.6 lbs)
Product Standards

IEC 60601-1-2 Edition 4.1:2020 // IEC 60601-1-6:2010/AMD2:2020 // IEC 60601-1:2005/AMD2:2020 [Externally Certified]
