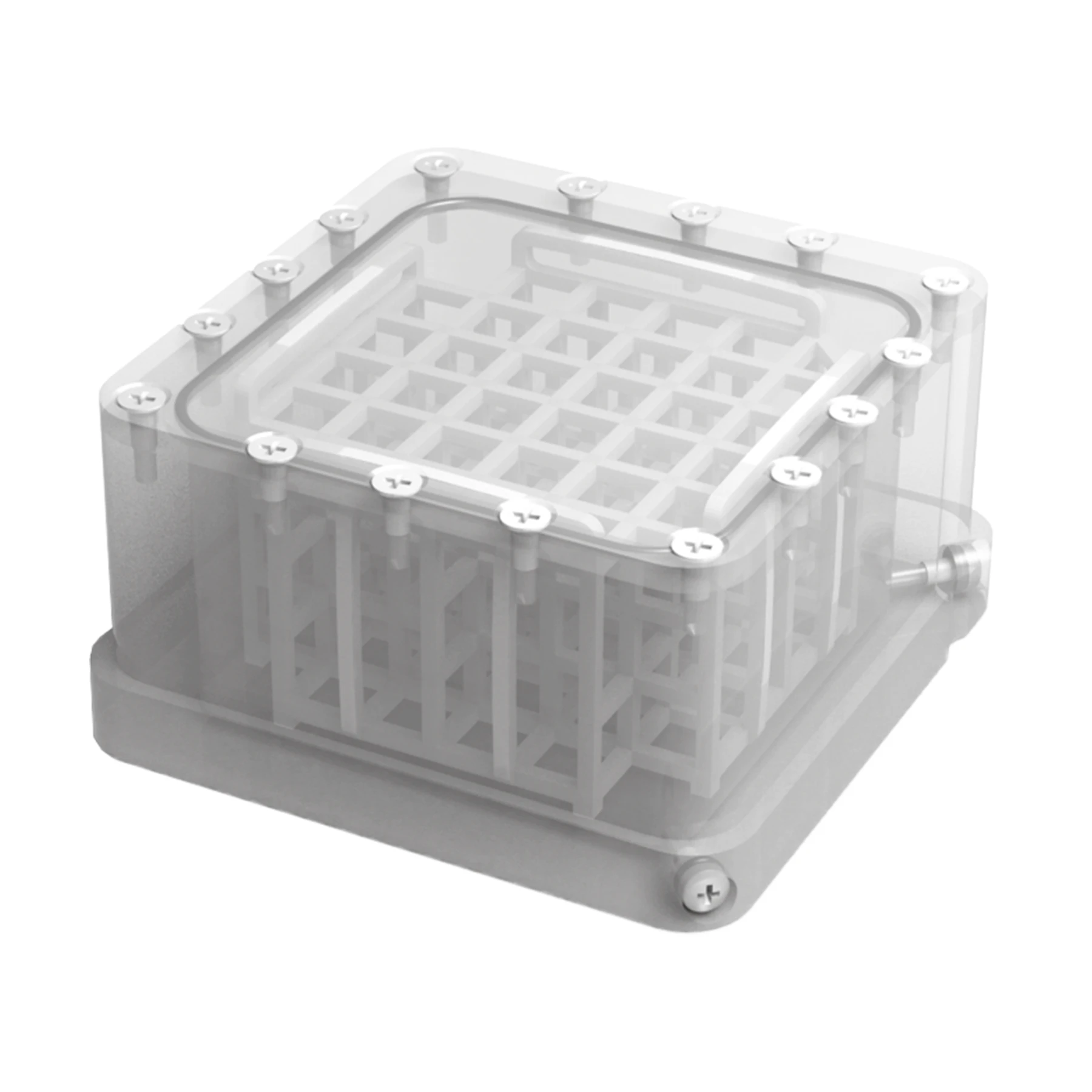

LUCY® MRI Grid Insert

LUCY® MRI Grid Insert part of complete solution for: Stereotactic

LUCY® MRI Grid Insert Overview

Confident Image Fusion

  • Verify the accuracy of image fusion with a single phantom.
  • Fused images can be compared to measurements described in the Lucy specifications to ensure sub-millimeter precision.

Minimize Transfer Errors

  • Industry-leading manufacturing tolerances provide incomparable accuracy when contrasting the Lucy volumes, geometry and distance measurements to images in treatment planning software.
  • These measurements should be evaluated at each step of the imaging process.
  • Rigid tolerances can drastically reduce cumulative uncertainty.

Simple Patient Dosimetry

  • Dosimetry inserts quickly obtain absolute, relative and point-dose dosimetry measurements at isocenter and at exact positions off isocenter.
  • Seamless evaluation of dose as well as geometric accuracy, including CBCT and MV/kV alignment.

Product Dimensions

  • Dimensions
    85 x 85 x 35 mm (3.35 x 3.35 x 1.38 in)
  • MRI grid section
    1 cm
  • Grid pitch
    2 mm
  • Grid strut thickness


Tech Notes
