Machine QA

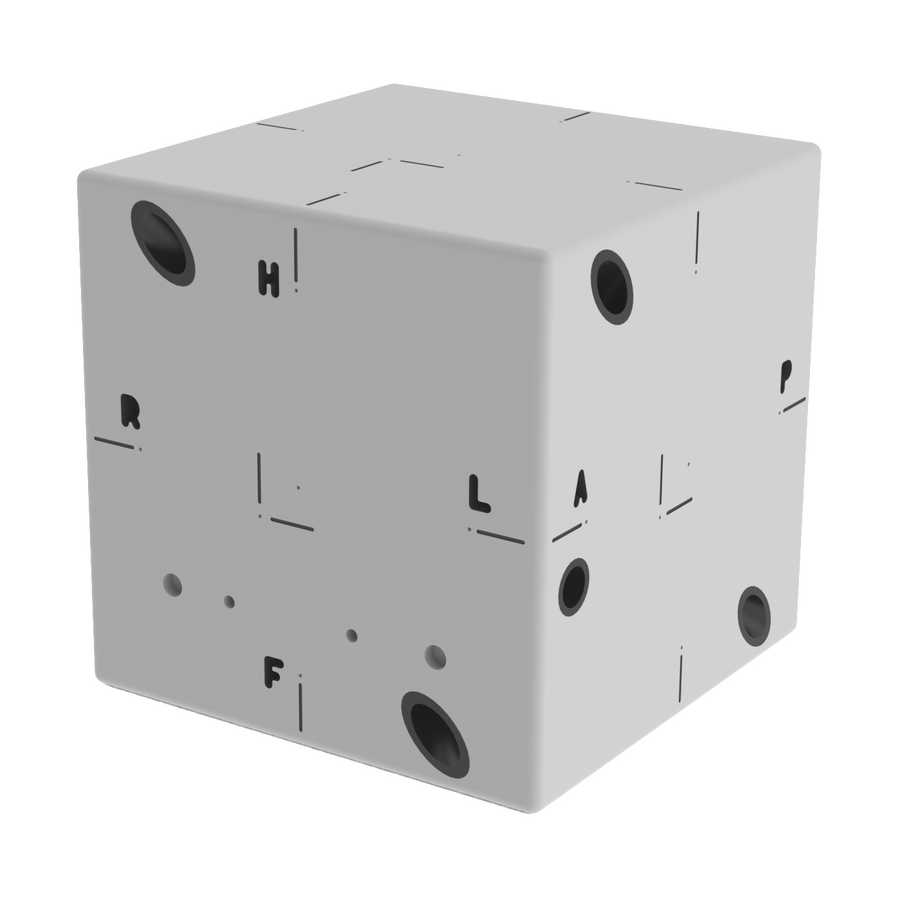

MIMI™ Phantom Multiple Imaging Modality Isocentricity Phantom
Ensure image guidance accuracy by measuring the coincidence of isocenter prescribed by the lasers, treatment beam and image guidance systems.
MIMI™ Phantom part of complete solution for:
Daily QA
MIMI™ Phantom Overview
Test Automatic Table Adjustments
- Additional cross-hair markers that are offset known distances from the true isocenter.
- Setting up the phantom aligned to these offsets allows you to verify the shifts prescribed by automatic table positioning systems.
Test Integrated System Accuracy of:
- 3D Cone Beam registration (CBCT, OBI, XVI) systems
- MV/kV Isocentricity
- Lasers and Couch Table Adjustments
- Optical Guidance Systems
- Virtual and physical graticules
- 6D couch pitch, yaw, roll
Accuracy in 6 Dimensions
- HexaCheck fits seamlessly into your workflow as an extension of your 3D IGRT QA routine.
- 6D couch QA functionality is already built into PIPSpro’s IGRT QA module.
REF Number
-
91240 - MIMI Phantom
Dimensions
-
Height14 cm (5.5 in)
-
Width14 cm (5.5 in)
-
Length14 cm (5.5 in)
-
Weight2.8 kg (6.1 lbs)
Materials
-
Cross-linked polystyrene for main phantom Black PVC Rods (bone equivalent)
Publications
-
The HexaCheck and MIMI Phantom: Norfolk and Norwich preferred choice for weekly 6 DOF couch QA.
Commissioning of a Varian Six Degrees of Freedom (6DoF) Couch using the Standard Imaging HexaCheck Jig with the MIMI Phantom
Initial Evaluation of a Novel 6D QA Phantom (HexaCheck) for Daily 6D Couch Correction Assessment
An accuracy assessment of different rigid body image registration methods
HexaCheck 6DoF Quality Assurance Phantom Implementation for Elekta HexaPOD and BrainLAB Robotics 6D Couches
Multiple Imaging Modality Isocentricity Phantom
Elekta XVI Volumetric Imaging and Registration QA With the MIMI Phantom
Stereotactic body radiation therapy: The report of AAPM Task Group 101
SBRT: QA and Safety Considerations
Videos
Webinars
Presented by Alonso Gutierrez, Ph.D., Assistant Vice President and Chief Physicist at Miami Cancer Institute, Baptist Health South Florida. He delves into the use of MIMI Phantom and HexaCheck in a multi-technology platform cancer center.
Oct 29th, 2020 / Daily QA the Reliable Way
Save time on your daily routine by eliminating trips in and out of the vault, extraneous setup, and manual data logging with our Daily QA solutions. Get an in-depth look at the MIMI Phantom, HexaCheck, and the QA BeamChecker Plus and learn the advantages of using these for precise, efficient QA.
